396
Z. Wang and B. Luk’yanchuk

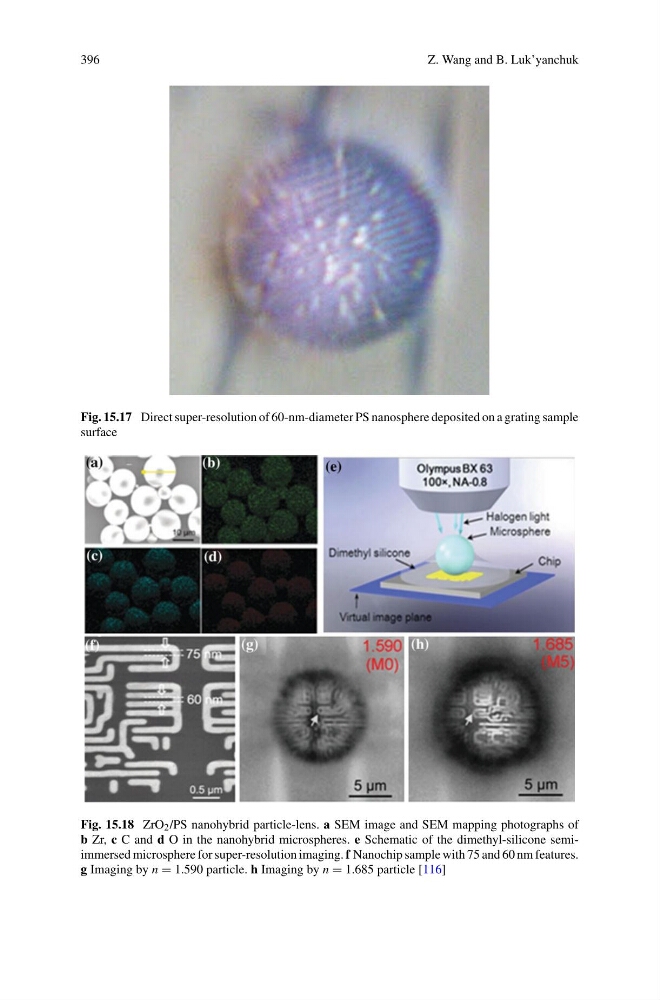

Fig. 15.17 Direct super-resolution of 60-nm-diameter PS nanosphere deposited on a grating sample
surface
Fig. 15.18 ZrO 2 /PS nanohybrid particle-lens. a SEM image and SEM mapping photographs of
b Zr, c C and d O in the nanohybrid microspheres. e Schematic of the dimethyl-silicone semiimmersed microsphere for super-resolution imaging. f Nanochip sample with 75 and 60 nm features.
g Imaging by n = 1.590 particle. h Imaging by n = 1.685 particle [116]
