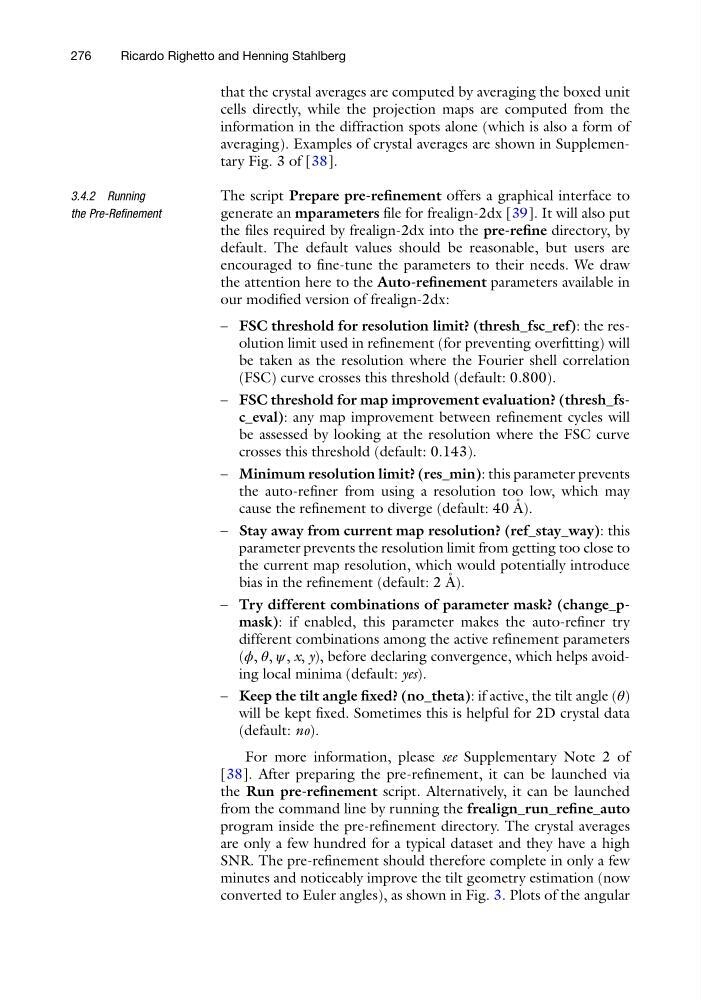

that the crystal averages are computed by averaging the boxed unit
cells directly, while the projection maps are computed from the
information in the diffraction spots alone (which is also a form of
averaging). Examples of crystal averages are shown in Supplementary Fig. 3 of [38].
3.4.2 Running
the Pre-Refinement
The script Prepare pre-refinement offers a graphical interface to
generate an mparameters file for frealign-2dx [39]. It will also put
the files required by frealign-2dx into the pre-refine directory, by
default. The default values should be reasonable, but users are
encouraged to fine-tune the parameters to their needs. We draw
the attention here to the Auto-refinement parameters available in
our modified version of frealign-2dx:
– FSC threshold for resolution limit? (thresh_fsc_ref): the resolution limit used in refinement (for preventing overfitting) will
be taken as the resolution where the Fourier shell correlation
(FSC) curve crosses this threshold (default: 0.800).
– FSC threshold for map improvement evaluation? (thresh_fsc_eval): any map improvement between refinement cycles will
be assessed by looking at the resolution where the FSC curve
crosses this threshold (default: 0.143).
– Minimum resolution limit? (res_min): this parameter prevents
the auto-refiner from using a resolution too low, which may
cause the refinement to diverge (default: 40 A ˚ ).
– Stay away from current map resolution? (ref_stay_way): this
parameter prevents the resolution limit from getting too close to
the current map resolution, which would potentially introduce
bias in the refinement (default: 2 A ˚ ).
– Try different combinations of parameter mask? (change_pmask): if enabled, this parameter makes the auto-refiner try
different combinations among the active refinement parameters
(ϕ, θ, ψ, x, y), before declaring convergence, which helps avoiding local minima (default: yes).
– Keep the tilt angle fixed? (no_theta): if active, the tilt angle (θ)
will be kept fixed. Sometimes this is helpful for 2D crystal data
(default: no).
For more information, please see Supplementary Note 2 of
[38]. After preparing the pre-refinement, it can be launched via
the Run pre-refinement script. Alternatively, it can be launched
from the command line by running the frealign_run_refine_auto
program inside the pre-refinement directory. The crystal averages
are only a few hundred for a typical dataset and they have a high
SNR. The pre-refinement should therefore complete in only a few
minutes and noticeably improve the tilt geometry estimation (now
converted to Euler angles), as shown in Fig. 3. Plots of the angular
276
Ricardo Righetto and Henning Stahlberg
