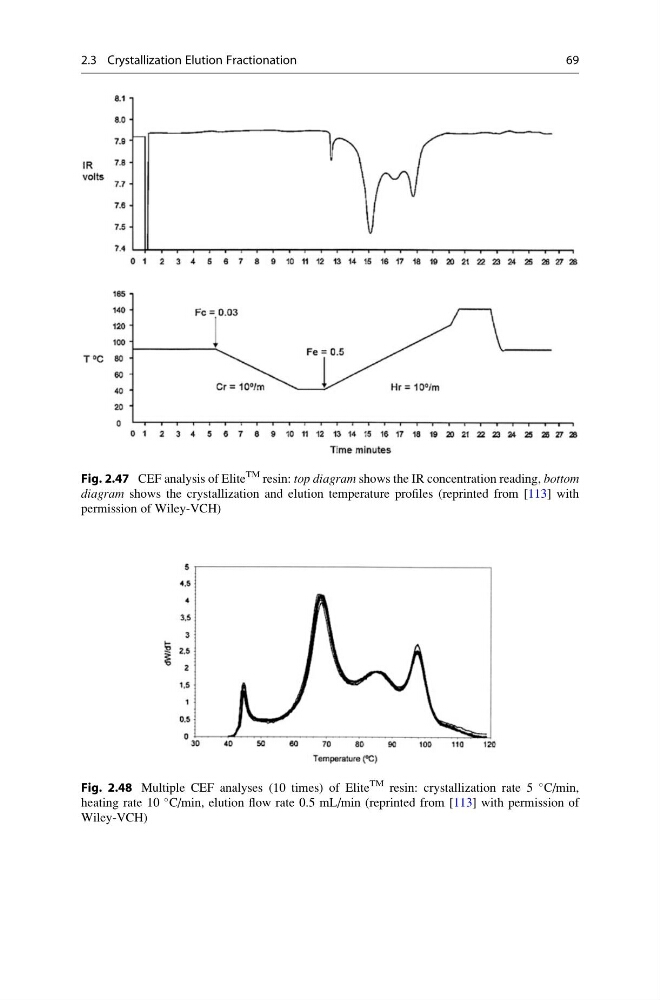

Fig. 2.47 CEF analysis of Elite
TM resin: top diagram shows the IR concentration reading, bottom
diagram shows the crystallization and elution temperature profiles (reprinted from [113] with
permission of Wiley-VCH)
Fig. 2.48 Multiple CEF analyses (10 times) of Elite
TM resin: crystallization rate 5
C/min,
heating rate 10
C/min, elution flow rate 0.5 mL/min (reprinted from [113] with permission of
Wiley-VCH)
2.3 Crystallization Elution Fractionation
69
TM resin: top diagram shows the IR concentration reading, bottom
diagram shows the crystallization and elution temperature profiles (reprinted from [113] with
permission of Wiley-VCH)
Fig. 2.48 Multiple CEF analyses (10 times) of Elite
TM resin: crystallization rate 5
C/min,
heating rate 10
C/min, elution flow rate 0.5 mL/min (reprinted from [113] with permission of
Wiley-VCH)
2.3 Crystallization Elution Fractionation
69
