92
Permeable Reactive Barrier

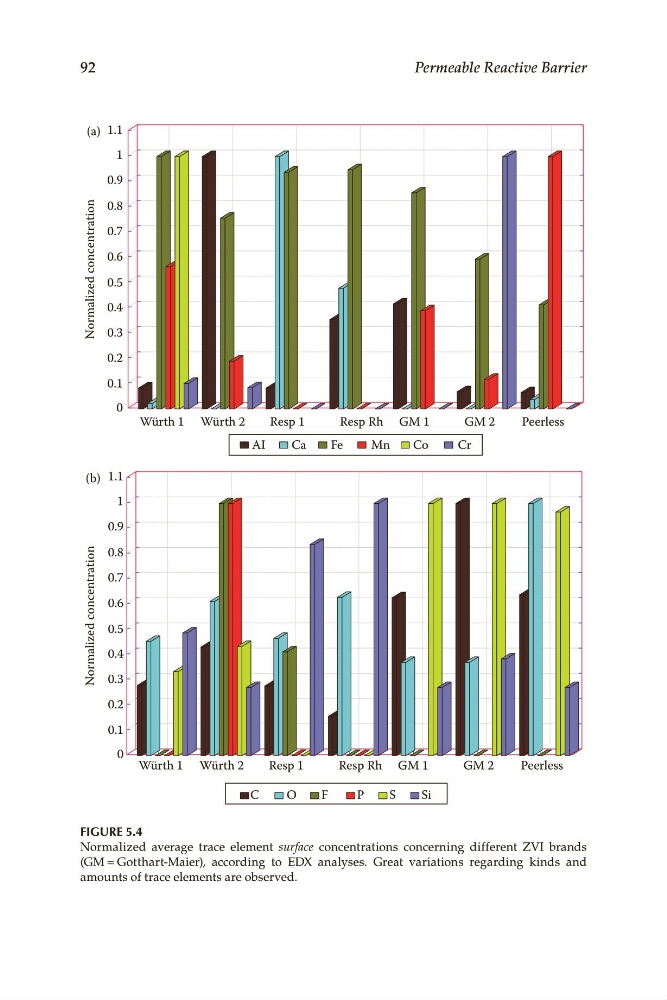

FIGURE 5.4
Normalized average trace element surface concentrations concerning different ZVI brands
(GM = Gotthart-Maier), according to EDX analyses. Great variations regarding kinds and
amounts of trace elements are observed.
