In addition, accumulation and efflux assays can be used to
quantify and compare EtBr transport activity between mycobacterial strains (e.g., clinical isolates or mutants impaired in efflux or
permeability). For example, Fig. 4 (adapted from Ref. 25) presents
efflux of EtBr in two M. bovis BCG strains: M. bovis BCG (wildtype) and BCG-INH
R (an BCG derivative resistant to isoniazid by
the activity of efflux pumps). The BCG-INH
R strain showed an
increased efflux of EtBr (evidenced by a faster decrease in

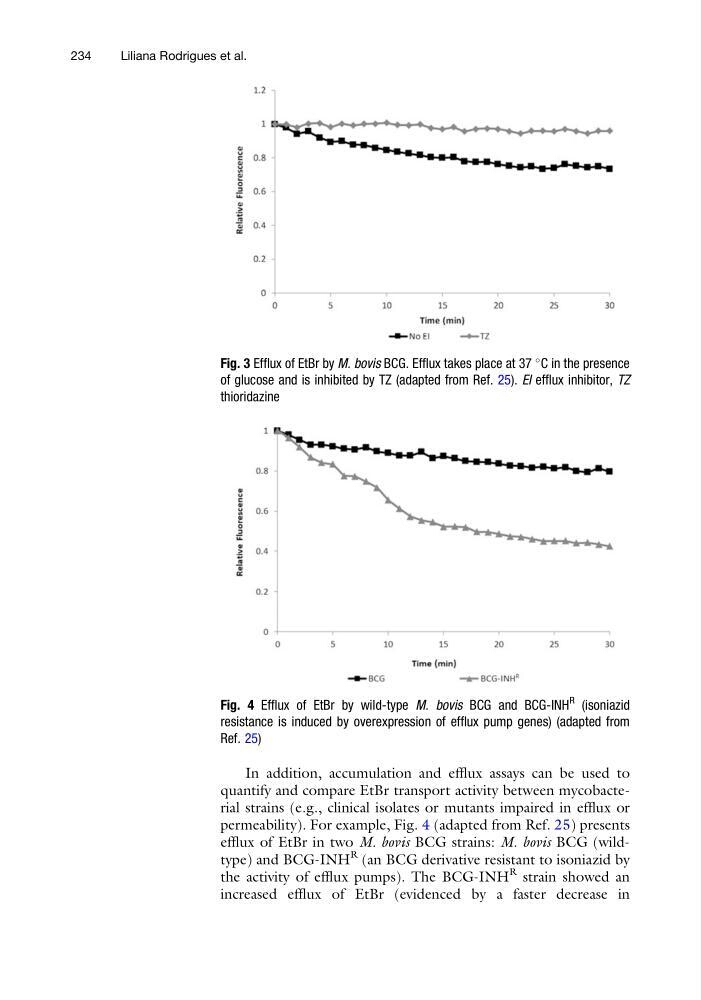

Fig. 3 Efflux of EtBr by M. bovis BCG. Efflux takes place at 37
C in the presence
of glucose and is inhibited by TZ (adapted from Ref. 25). EI efflux inhibitor, TZ
thioridazine
Fig. 4 Efflux of EtBr by wild-type M. bovis BCG and BCG-INH
R
(isoniazid
resistance is induced by overexpression of efflux pump genes) (adapted from
Ref. 25)
234
Liliana Rodrigues et al.
quantify and compare EtBr transport activity between mycobacterial strains (e.g., clinical isolates or mutants impaired in efflux or
permeability). For example, Fig. 4 (adapted from Ref. 25) presents
efflux of EtBr in two M. bovis BCG strains: M. bovis BCG (wildtype) and BCG-INH
R (an BCG derivative resistant to isoniazid by
the activity of efflux pumps). The BCG-INH
R strain showed an
increased efflux of EtBr (evidenced by a faster decrease in
Fig. 3 Efflux of EtBr by M. bovis BCG. Efflux takes place at 37
C in the presence
of glucose and is inhibited by TZ (adapted from Ref. 25). EI efflux inhibitor, TZ
thioridazine
Fig. 4 Efflux of EtBr by wild-type M. bovis BCG and BCG-INH
R
(isoniazid
resistance is induced by overexpression of efflux pump genes) (adapted from
Ref. 25)
234
Liliana Rodrigues et al.
