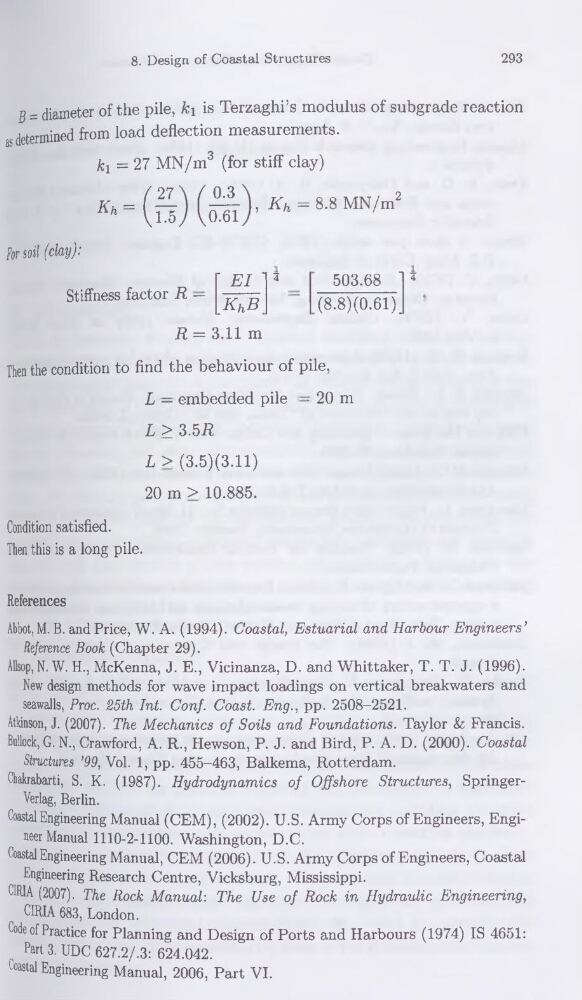

B = diameter of the pile, ki is Terzaghi’s modulus of subgrade reaction
as determined from load deflection measurements.
ki = 27 MN/m3 (for stiff clay)
MS (âM=8-8MN/m2
For soil (clay):
Stiffness factor R -
' El 1 *
J^hB
503.68 1 *
(8.8)(0.61)_
R = 3.11 m
Then the condition to find the behaviour of pile,
L — embedded pile - 20 m
L > 3.5R
L > (3.5)(3.11)
20 m > 10.885.
Condition satisfied.
Then this is a long pile.
References
Abbot, M. B. and Price, W. A. (1994). Coastal, Estuarial and Harbour Engineers’
Référencé Book (Chapter 29).
Allsop, N. W. H., McKenna, J. E., Vicinanza, D. and Whittaker, T. T. J. (1996).
New design methods for wave impact loadings on vertical breakwaters and
seawalls, Proc. 25th Int. Conf. Coast. Eng., pp. 2508-2521.
Atkinson, J. (2007). The Mechanics of Soils and Foundations. Taylor & Francis.
Bullock, G. N., Crawford, A. R., Hewson, P. J. and Bird, P. A. D. (2000). Coastal
Structures ’99, Vol. 1, pp. 455-463, Balkema, Rotterdam.
Chakrabarti, S. K. (1987). Hydrodynamics of Offshore Structures, SpringerVerlag, Berlin.
Coastal Engineering Manual (CEM), (2002). U.S. Army Corps of Engineers, Engineer Manual 1110-2-1100. Washington, D.C.
Coastal Engineering Manual, CEM (2006). U.S. Army Corps of Engineers, Coastal
Engineering Research Centre, Vicksburg, Mississippi.
CIRIA (2007). The Rock Manual: The Use of Rock in Hydraulic Engineering,
CIRIA 683, London.
Code of Practice for Planning and Design of Ports and Harbours (1974) IS 4651:
Part 3. UDC 627.2/.3: 624.042.
Coastal Engineering Manual, 2006, Part VI.
