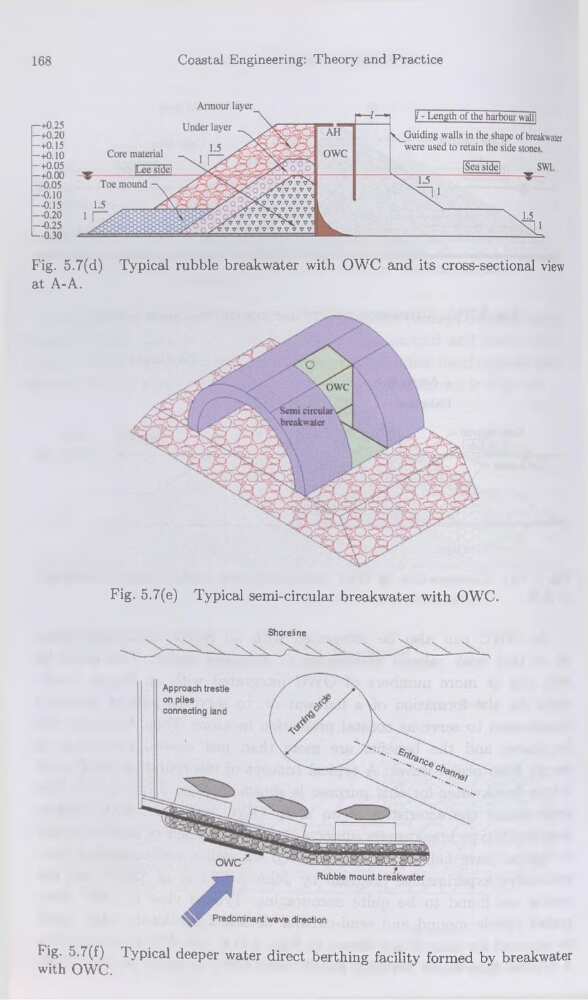

Fig. 5.7(d) Typical rubble breakwater with OWC and its cross-sectional view
at A-A.
Fig. 5.7(e) Typical semi-circular breakwater with OWC.
Shoreline
Fig. 5.7(f) Typical deeper water direct berthing facility formed by breakwater
with OWC.
