Figure 7.57

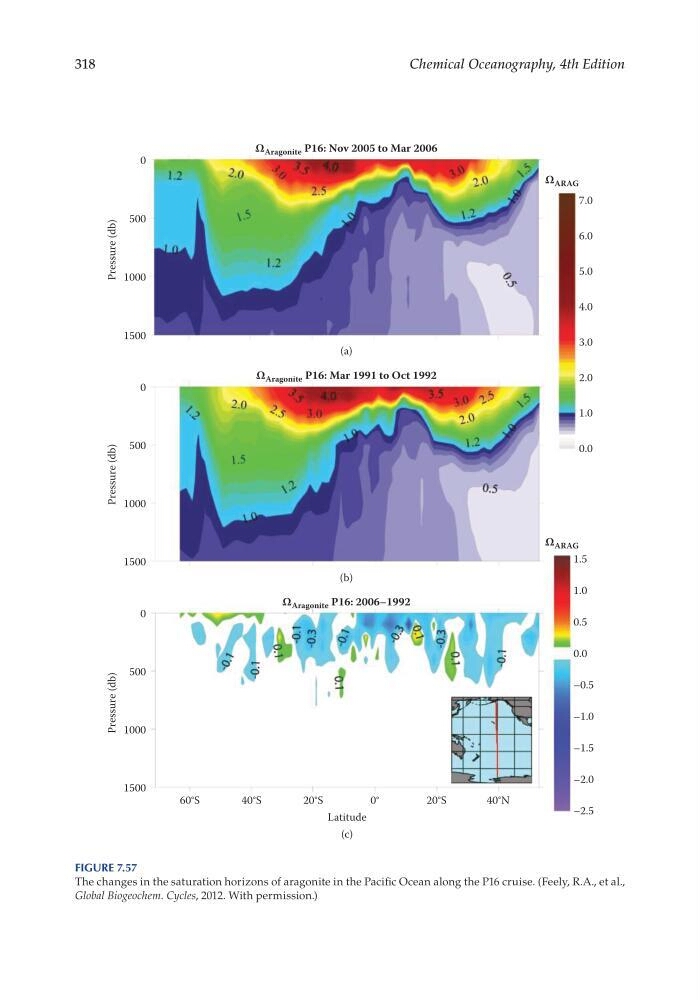

The changes in the saturation horizons of aragonite in the Pacific Ocean along the P16 cruise. (Feely, R.A., et al.,
Global Biogeochem. Cycles, 2012. With permission.)
