Descriptive Oceanography
500 and an average width of 65 km. The break in slope is the outer limit of the shelf and
has a slope of about 1 to 20 and an average depth of 130 m. The continental slope is about
4000 m from the shelf to the deep- sea bottom. In some places, it extends as much as 9000 m
vertically over a relatively short horizontal distance (e.g., off the western coast of America).
The deep- sea bottom represents the most extensive topographic area (76% of ocean basins)
Sea Level
Break in Slope
Deep Sea Bottom
Basin
Sea
Mount
Island Arc
Trench
Sh elf
S lo p e
Low Water
High Water
Shore
Continent

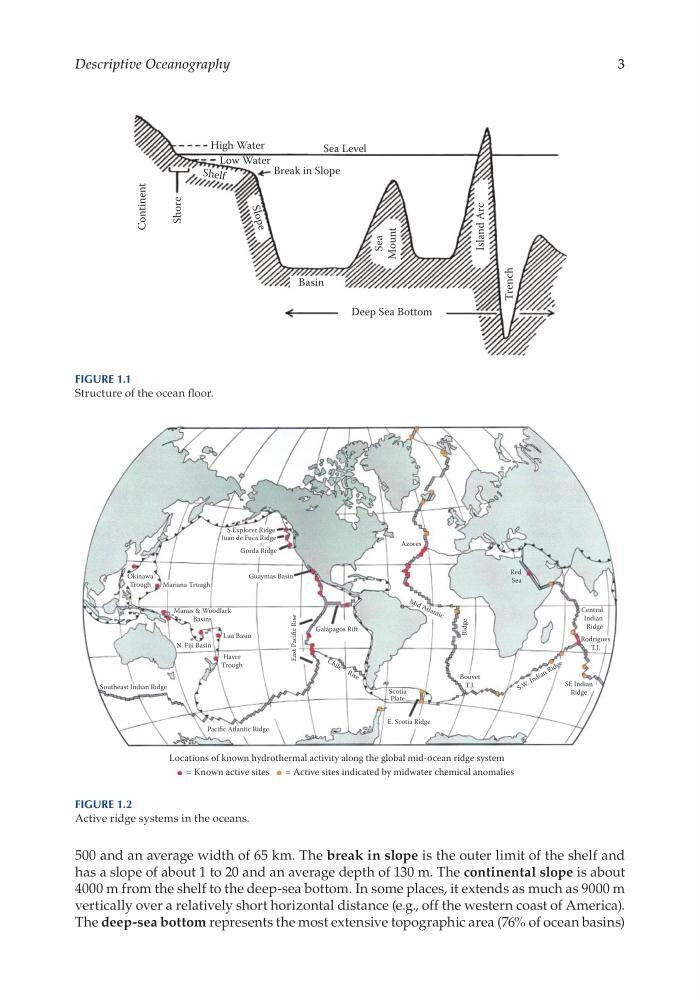

Figure 1.1
Structure of the ocean floor.
Okinawa
Trough
Mariana Trough
Manus & Woodlark
Basins
Guaymas Basin
Gorda Ridge
S.Explorer Ridge
Juan de Fuca Ridge
Lau Basin
Galápagos Rift
East Pacific Rise
C h il e R is e
N. Fiji Basin
Havre
Trough
Southeast Indian Ridge
Pacific Atlantic Ridge
Azores
Red
Sea
Central
Indian
Ridge
SE Indian
Ridge
Bouvet
T.J.
Scotia
Plate
E. Scotia Ridge
M id A tl an ti c
Ridge
S .W
. In d ia n R id g e
Rodrigues
T.J.
Locations of known hydrothermal activity along the global mid-ocean ridge system
= Known active sites
= Active sites indicated by midwater chemical anomalies
Figure 1.2
Active ridge systems in the oceans.
