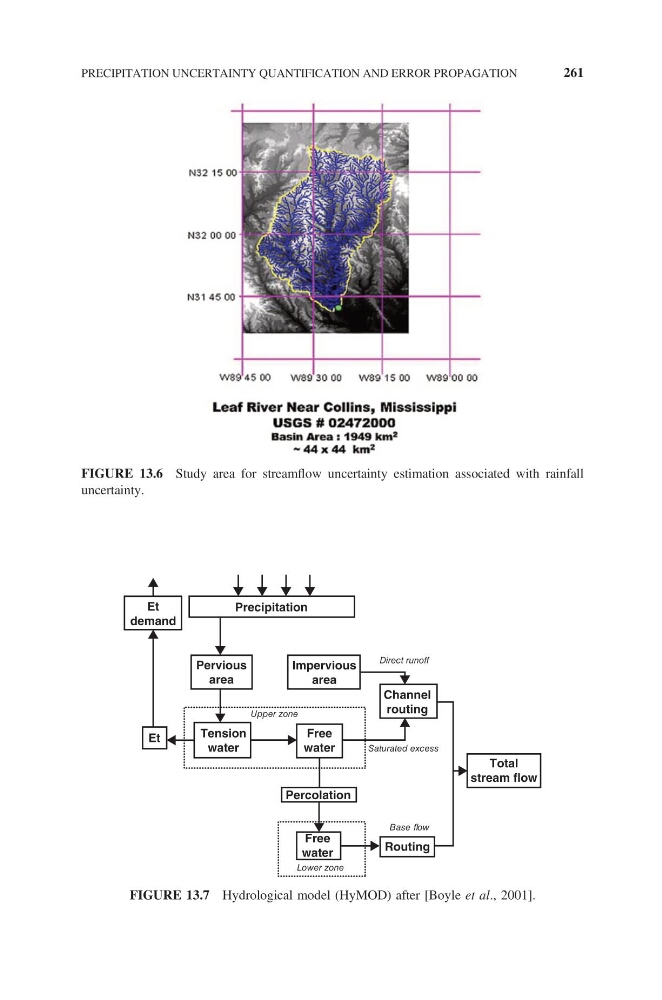

FIGURE 13.6 Study area for streamflow uncertainty estimation associated with rainfall
uncertainty.
Impervious
area
Pervious
area
Precipitation
Et
demand
Tension
water
Free
water
Et
Free
water
Percolation
Total
stream flow
Direct runoff
Base flow
Saturated excess
Upper zone
Lower zone
Routing
Channel
routing
FIGURE 13.7 Hydrological model (HyMOD) after [Boyle et al., 2001].
