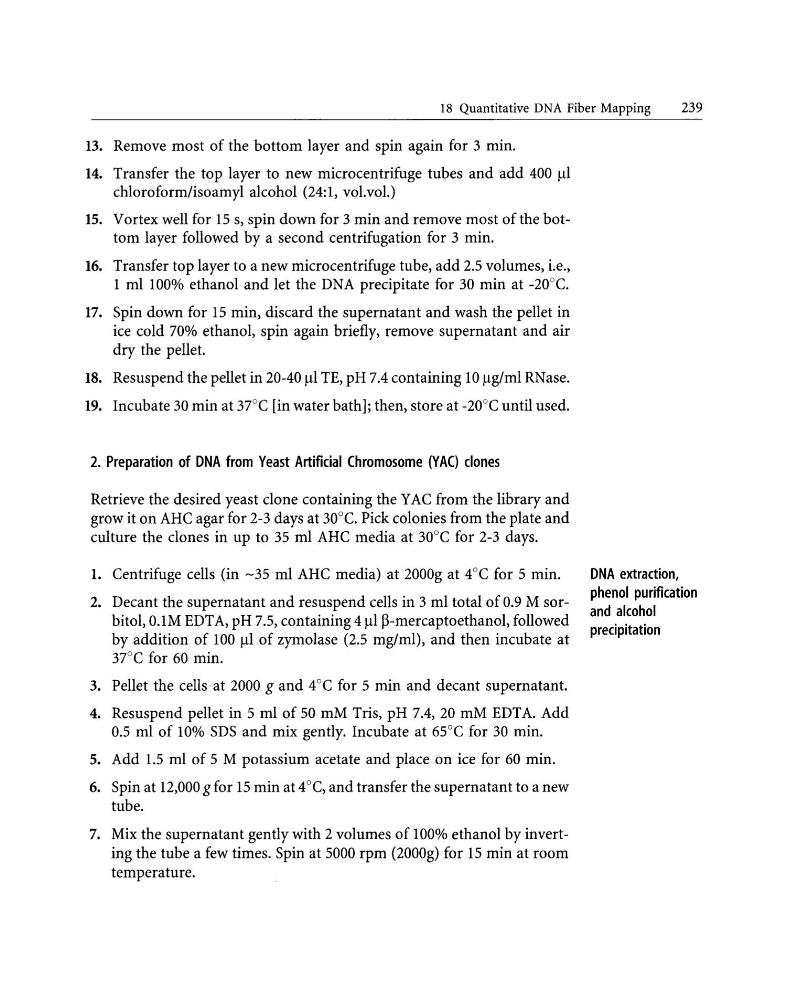

18 Quantitative DNA Fiber Mapping
239
13. Remove most of the bottom layer and spin again for 3 min.
14. Transfer the top layer to new microcentrifuge tubes and add 400 III
chloroform/isoamyl alcohol (24:1, vol.vol.)
15. Vortex well for 15 s, spin down for 3 min and remove most of the bottom layer followed by a second centrifugation for 3 min.
16. Transfer top layer to a new microcentrifuge tube, add 2.5 volumes, i.e.,
1 ml 100% ethanol and let the DNA precipitate for 30 min at -20°e.
17. Spin down for 15 min, discard the supernatant and wash the pellet in
ice cold 70% ethanol, spin again briefly, remove supernatant and air
dry the pellet.
18. Resuspend the pellet in 20-40 III TE, pH 7.4 containing 10 Ilg/ml RNase.
19. Incubate 30 min at 37°C [in water bath]; then, store at -20°C until used.
2. Preparation of DNA from Yeast Artificial Chromosome (YAe) clones
Retrieve the desired yeast clone containing the YAC from the library and
grow it on AHC agar for 2-3 days at 30°e. Pick colonies from the plate and
culture the clones in up to 35 ml AHC media at 30°C for 2-3 days.
1. Centrifuge cells (in -35 ml AHC media) at 2000g at 4°C for 5 min.
2. Decant the supernatant and resuspend cells in 3 ml total of 0.9 M sorbitol, O.IM EDTA, pH 7.5, containing 4111 ~-mercaptoethanol, followed
by addition of 100 III of zymolase (2.5 mg/ml), and then incubate at
37°C for 60 min.
3. Pellet the cells at 2000 g and 4°C for 5 min and decant supernatant.
4. Resuspend pellet in 5 ml of 50 mM Tris, pH 7.4,20 mM EDTA. Add
0.5 ml of 10% SDS and mix gently. Incubate at 65°C for 30 min.
5. Add 1.5 ml of 5 M potassium acetate and place on ice for 60 min.
6. Spin at 12,000 gfor 15 min at 4°C, and transfer the supernatant to a new
tube.
7. Mix the supernatant gently with 2 volumes of 100% ethanol by inverting the tube a few times. Spin at 5000 rpm (2000g) for 15 min at room
temperature.
DNA extraction,
phenol purification
and alcohol
precipitation
