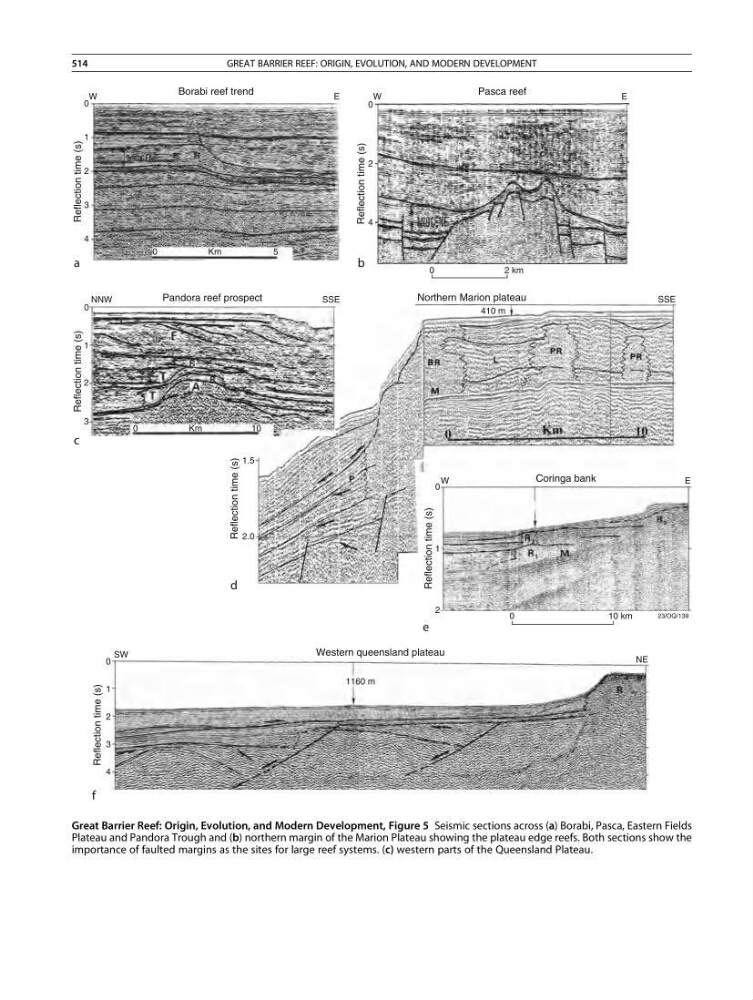

Great Barrier Reef: Origin, Evolution, and Modern Development, Figure 5 Seismic sections across (a) Borabi, Pasca, Eastern Fields
Plateau and Pandora Trough and (b) northern margin of the Marion Plateau showing the plateau edge reefs. Both sections show the
importance of faulted margins as the sites for large reef systems. (c) western parts of the Queensland Plateau.
