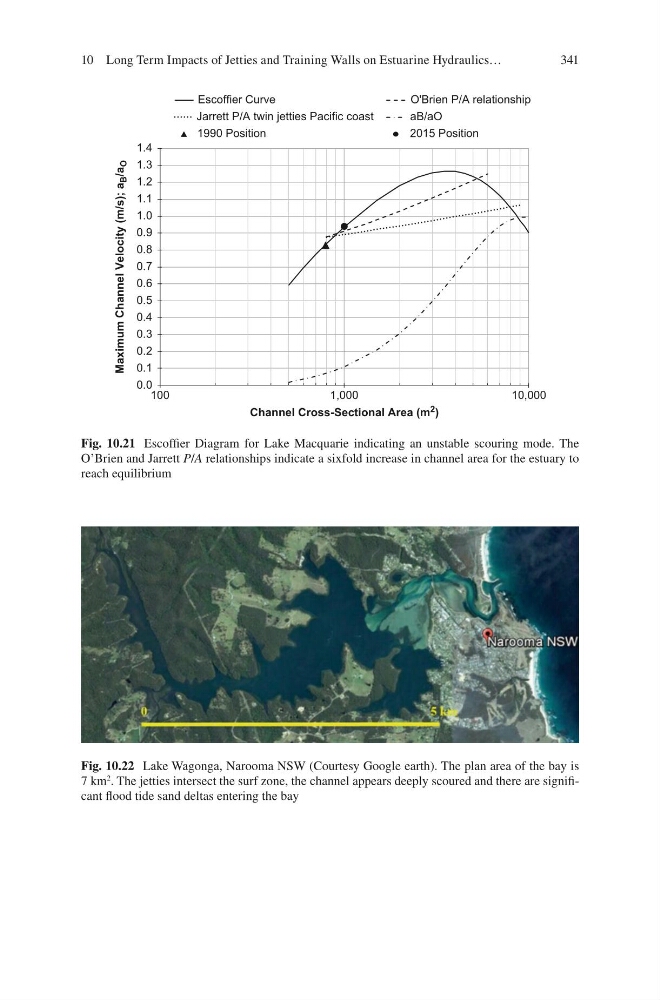

Fig. 10.21 Escoffier Diagram for Lake Macquarie indicating an unstable scouring mode. The
O’Brien and Jarrett P/A relationships indicate a sixfold increase in channel area for the estuary to
reach equilibrium
Fig. 10.22 Lake Wagonga, Narooma NSW (Courtesy Google earth). The plan area of the bay is
7 km
2 . The jetties intersect the surf zone, the channel appears deeply scoured and there are significant flood tide sand deltas entering the bay
