12

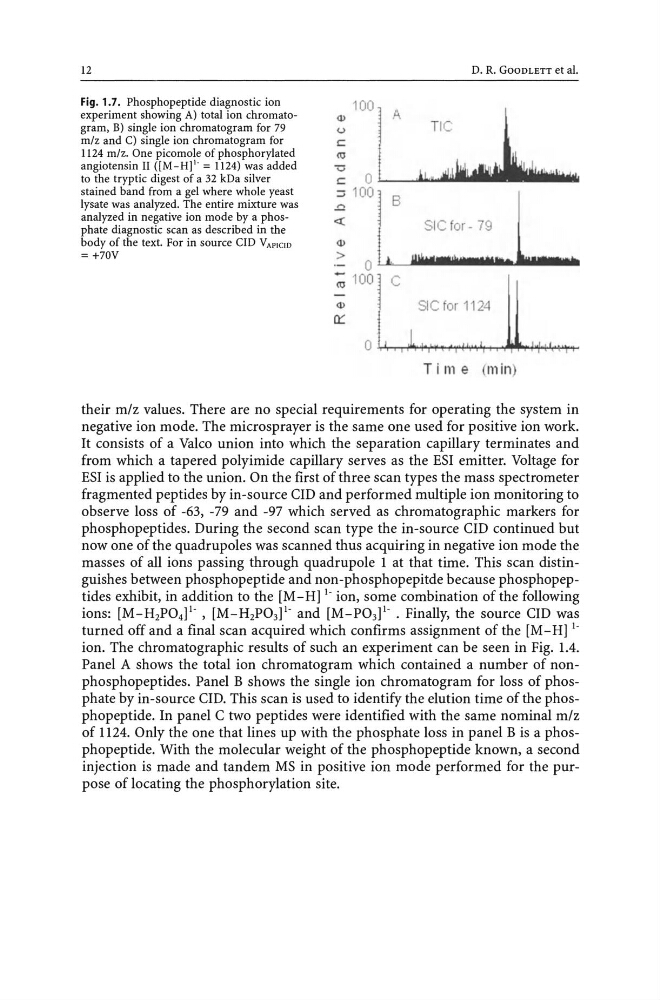

Fig. 1.7. Phosphopeptide diagnostic ion
experiment showing A) total ion chromatogram, B) single ion chromatogram for 79
mlz and C) single ion chromatogram for
1124 mlz. One picomole of phosphorylated
angiotensin II ([M_H]I. = 1124) was added
to the tryptic digest of a 32 kDa silver
stained band from a gel where whole yeast
lysate was analyzed. The entire mixture was
analyzed in negative ion mode by a phosphate diagnostic scan as described in the
body of the text. For in source CID VAPICID
= +70V
D. R. GOODLETT et aI.
_ Q ) : : ~ : : : 10
0
0 l L_ A----.JJ..i...lI _ _ _ l ... M
= _ , 1 '~:l ! ! I "'I! '+I + " ' ! : !"r l r ! ,
r: Ll J..> B~J & Y I l j ~ I I I I . : . f i l l l l : I I I I : .
- .. : I I ~ t ~ M ... ioJl .. ' lIs_lIInlilllb
('IJ 100 C
SIC for 1124
Time (min)
their m/z values. There are no special requirements for operating the system in
negative ion mode. The microsprayer is the same one used for positive ion work.
It consists of a Valco union into which the separation capillary terminates and
from which a tapered polyimide capillary serves as the ESI emitter. Voltage for
ESI is applied to the union. On the first of three scan types the mass spectrometer
fragmented peptides by in-source cm and performed multiple ion monitoring to
observe loss of -63, -79 and -97 which served as chromatographic markers for
phosphopeptides. During the second scan type the in-source cm continued but
now one of the quadrupoles was scanned thus acquiring in negative ion mode the
masses of all ions passing through quadrupole 1 at that time. This scan distinguishes between phosphopeptide and non-phosphopepitde because phosphopeptides exhibit, in addition to the [M - Hj!' ion, some combination of the following
ions: [M-H2P04P' , [M-H2P03j!' and [M-P03j!' . Finally, the source cm was
turned off and a final scan acquired which confirms assignment of the [M-Hj!'
ion. The chromatographic results of such an experiment can be seen in Fig. 1.4.
Panel A shows the total ion chromatogram which contained a number of nonphosphopeptides. Panel B shows the single ion chromatogram for loss of phosphate by in-source cm. This scan is used to identify the elution time of the phosphopeptide. In panel C two peptides were identified with the same nominal m/z
of 1124. Only the one that lines up with the phosphate loss in panel B is a phosphopeptide. With the molecular weight of the phosphopeptide known, a second
injection is made and tandem MS in positive ion mode performed for the purpose of locating the phosphorylation site.
