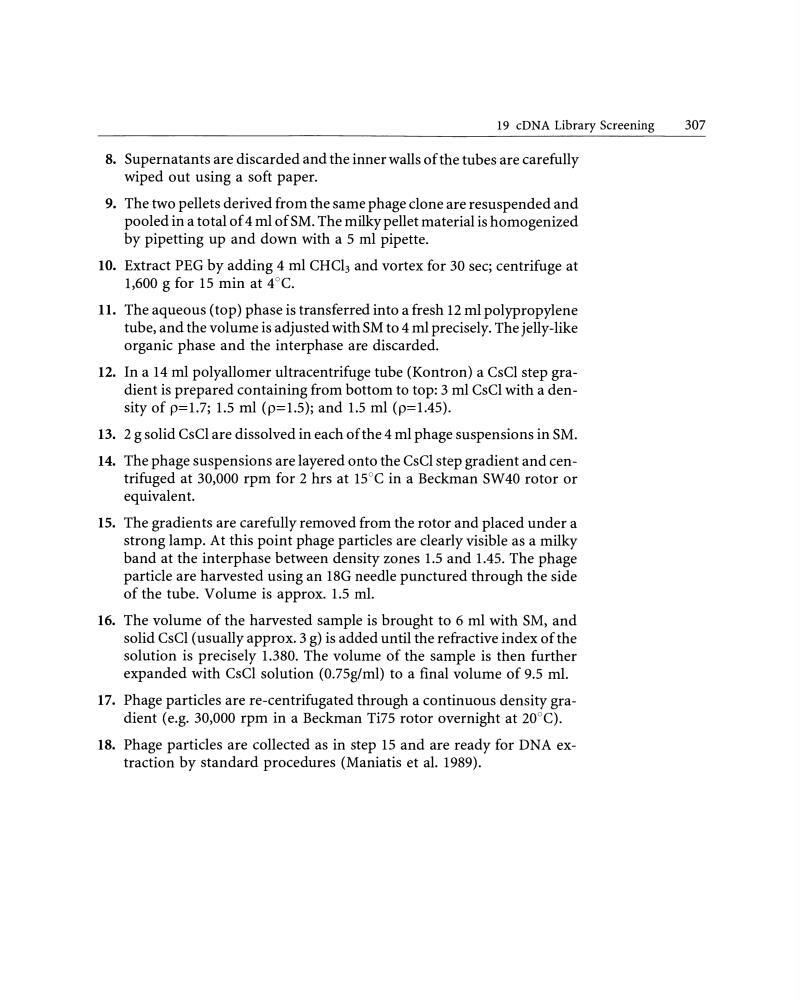

19 cDNA Library Screening
307
8. Supernatants are discarded and the inner walls of the tubes are carefully
wiped out using a soft paper.
9. The two pellets derived from the same phage clone are resuspended and
pooled in a total of 4 ml of SM. The milky pellet material is homogenized
by pipetting up and down with a 5 ml pipette.
10. Extract PEG by adding 4 ml CHC13 and vortex for 30 sec; centrifuge at
1,600 g for 15 min at 4°C.
11. The aqueous (top) phase is transferred into a fresh 12 ml polypropylene
tube, and the volume is adjusted with SM to 4 ml precisely. The jelly-like
organic phase and the interphase are discarded.
12. In a 14 ml polyallomer ultracentrifuge tube (Kontron) a CsCl step gradient is prepared containing from bottarn to top: 3 ml CsCl with a density of p=1.7; 1.5 ml (p=l.5); and 1.5 ml (p=1.45).
13. 2 g solid CsCl are dissolved in each of the 4 ml phage suspensions in SM.
14. The phage suspensions are layered onto the CsCl step gradient and centrifuged at 30,000 rpm for 2 hrs at 15°C in a Beckman SW40 rotor or
equivalent.
15. The gradients are carefully removed from the rotor and placed under a
strong lamp. At this point phage particles are clearly visible as a milky
band at the interphase between density zones 1.5 and 1.45. The phage
particle are harvested using an 18G needle punctured through the side
of the tube. V olume is approx. 1.5 ml.
16. The volume of the harvested sample is brought to 6 ml with SM, and
solid CsCl ( usually approx. 3 g) is added until the refractive index of the
solution is precisely 1.380. The volume of the sample is then further
expanded with CsCl solution (0.75g/ml) to a final volume of 9.5 ml.
17. Phage particles are re-centrifugated through a continuous density gradient (e.g. 30,000 rpm in a Beckman Ti75 rotor overnight at 20°C).
18. Phage particles are collected as in step 15 and areready for DNA extraction by standard procedures (Maniatis et al. 1989).
