CUTTER
2.
CUTTER SHAFT
3.
CUTTER ENGINE
4.
LADDER
5.
ENTRANCE SUCTION PIPE
6.
SECTION PIPE
7.
SANDPUMP
8.
RECLAMATION
PIPE
9.
FLOATING PIPELINE
I0.
SIDE WIRES
ii.
SIDE WINCHES
12.
WINCHES ANCHOR
BOOMS
13.
ANCHOR BOOMS
14.
"LADDER WINCH
15.
SPUD WINCHES

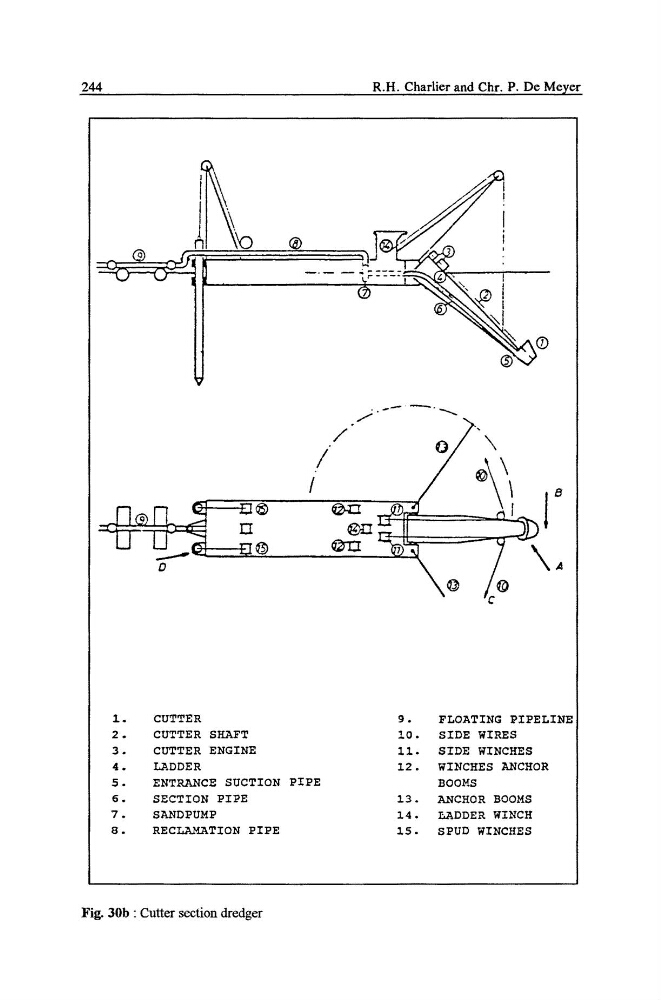

Fig. 30b : Cutter section dredger
