240
. . . . . . . . . . . . . . .
R.H. Charlier and Chr. P. De Meyer
Depth = d
meters
6
12
18
18
24
Iceland
South Coast
H - dl/3
D mm
1
0.7
0.5
0.5
0.4
h - dl/4
D mm
1
0.75
0.6
0.6
0.5
Danish North Sea Coast at Thyboroen
6
0.22
0.22
12
0.15
0.16
18
0.11
0.13

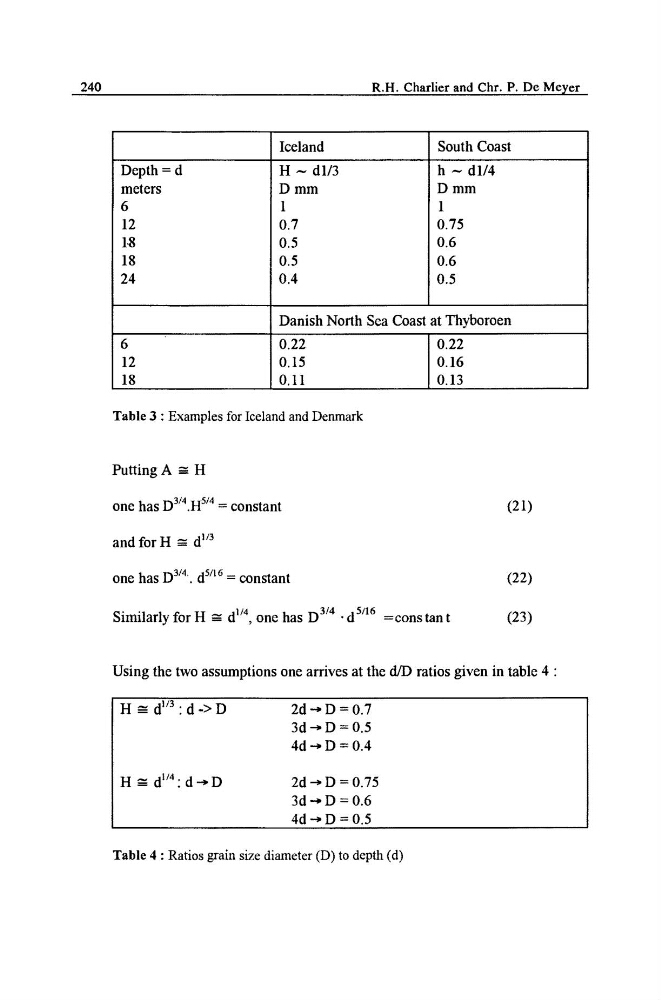

Table 3 : Examples for Iceland and Denmark
Putting A ~ H
one has D3/4.H 5/4 = constant
(21)
and for H - d 1/3
one has D 3/4'. d 5/16 = constant
(22)
Similarly for H = d ~/4, one has D 3/4 • d 5/16 =cons tan t
(23)
Using the two assumptions one arrives at the d/D ratios given in table 4 •
H ~- d 1/3 " d->D
2d--,D = 0.7
3d-,D = 0.5
4d-,D = 0.4
H -= d 1/4" d--,D
2d --, D = 0.75
3d --, D = 0.6
4d--,D = 0.5
Table 4 : Ratios grain size diameter (D) to depth (d)
