112
H.E.M. Meier and A. Höglund

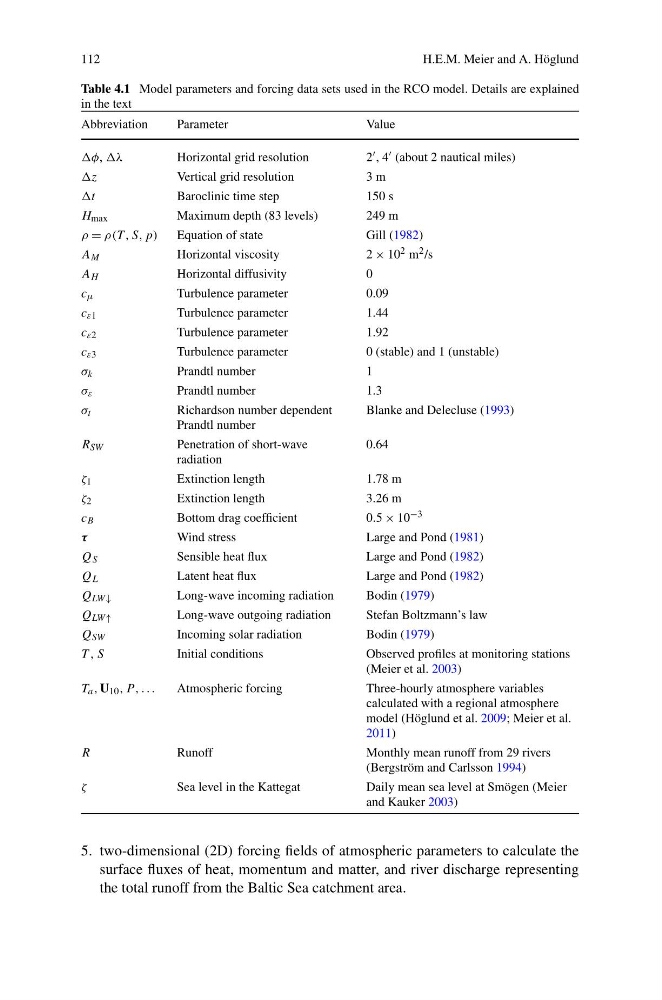

Table 4.1 Model parameters and forcing data sets used in the RCO model. Details are explained
in the text
Abbreviation
Parameter
Value
φ, λ
Horizontal grid resolution
2 , 4 (about 2 nautical miles)
z
Vertical grid resolution
3 m
t
Baroclinic time step
150 s
H max
Maximum depth (83 levels)
249 m
ρ = ρ(T , S, p)
Equation of state
Gill (1982)
A M
Horizontal viscosity
2 × 10 2 m 2 /s
A H
Horizontal diffusivity
0
c μ
Turbulence parameter
0.09
c ε1
Turbulence parameter
1.44
c ε2
Turbulence parameter
1.92
c ε3
Turbulence parameter
0 (stable) and 1 (unstable)
σ k
Prandtl number
1
σ ε
Prandtl number
1.3
σ t
Richardson number dependent
Prandtl number
Blanke and Delecluse (1993)
R SW
Penetration of short-wave
radiation
0.64
ζ 1
Extinction length
1.78 m
ζ 2
Extinction length
3.26 m
c B
Bottom drag coefficient
0.5 × 10 −3
τ
Wind stress
Large and Pond (1981)
Q S
Sensible heat flux
Large and Pond (1982)
Q L
Latent heat flux
Large and Pond (1982)
Q LW↓
Long-wave incoming radiation
Bodin (1979)
Q LW↑
Long-wave outgoing radiation
Stefan Boltzmann’s law
Q SW
Incoming solar radiation
Bodin (1979)
T , S
Initial conditions
Observed profiles at monitoring stations
(Meier et al. 2003)
T a , U 10 , P , . . .
Atmospheric forcing
Three-hourly atmosphere variables
calculated with a regional atmosphere
model (Höglund et al. 2009; Meier et al.
2011)
R
Runoff
Monthly mean runoff from 29 rivers
(Bergström and Carlsson 1994)
ζ
Sea level in the Kattegat
Daily mean sea level at Smögen (Meier
and Kauker 2003)
5. two-dimensional (2D) forcing fields of atmospheric parameters to calculate the
surface fluxes of heat, momentum and matter, and river discharge representing
the total runoff from the Baltic Sea catchment area.
