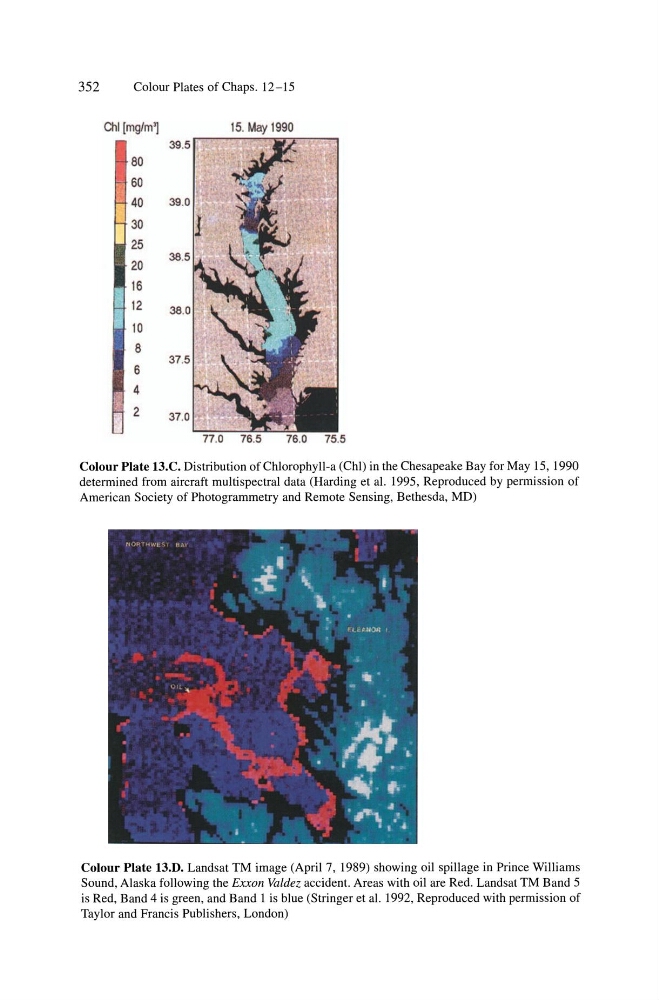

Colour Plate l3.C. Distribution of Chlorophyll-a (ChI) in the Chesapeake Bay for May 15. 1990
determined from aircraft multispectral data (Harding et al. 1995, Reproduced by permission of
American Society of Photogrammetry and Remote Sensing, Bethesda, MD)
Colour Plate l3.D. Landsat TM image (April 7, 1989) showing oil spillage in Prince Williams
Sound, Alaska following the Exxon Valde z accident. Areas with oil are Red. Landsat TM Band 5
is Red, Band 4 is green, and Band 1 is blue (Stringer et al. 1992, Reproduced with permission of
Taylor and Francis Publishers, London)
