194

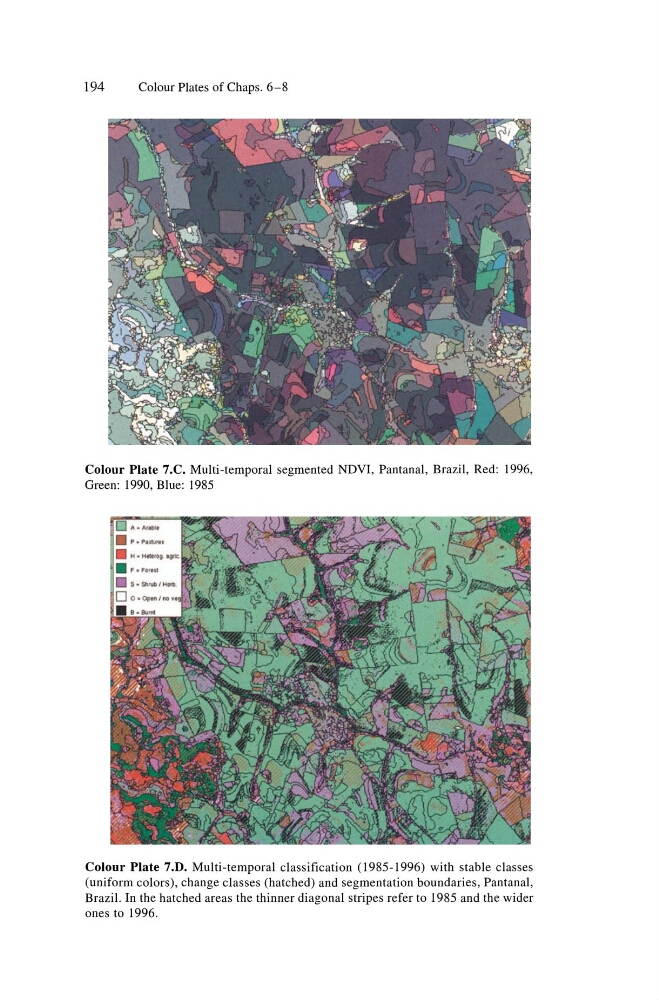

Colour Plates of Chaps. 6-8
Colour Plate 7.C. Multi-temporal segmented NDVI, Pantanal, Brazil, Red: 1996,
Green: 1990, Blue: 1985
Colour Plate 7.D. Multi-temporal classification (1985-1996) with stable classes
(uniform colors), change classes (hatched) and segmentation boundaries, Pantanal,
Brazil. In the hatched areas the thinner diagonal stripes refer to 1985 and the wider
ones to 1996.
