90
Michael J. McPhaden

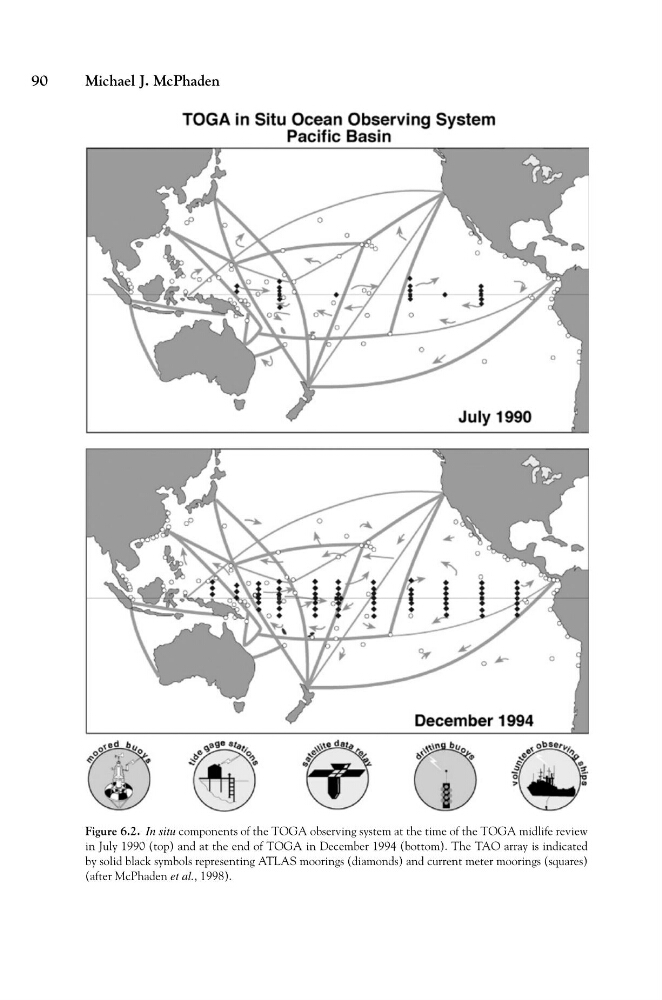

Figure 6.2. In situ components of the TOGA observing system at the time of the TOGA midlife review
in July 1990 (top) and at the end of TOGA in December 1994 (bottom). The TAO array is indicated
by solid black symbols representing ATLAS moorings (diamonds) and current meter moorings (squares)
(after McPhaden et al., 1998).
Michael J. McPhaden
Figure 6.2. In situ components of the TOGA observing system at the time of the TOGA midlife review
in July 1990 (top) and at the end of TOGA in December 1994 (bottom). The TAO array is indicated
by solid black symbols representing ATLAS moorings (diamonds) and current meter moorings (squares)
(after McPhaden et al., 1998).
