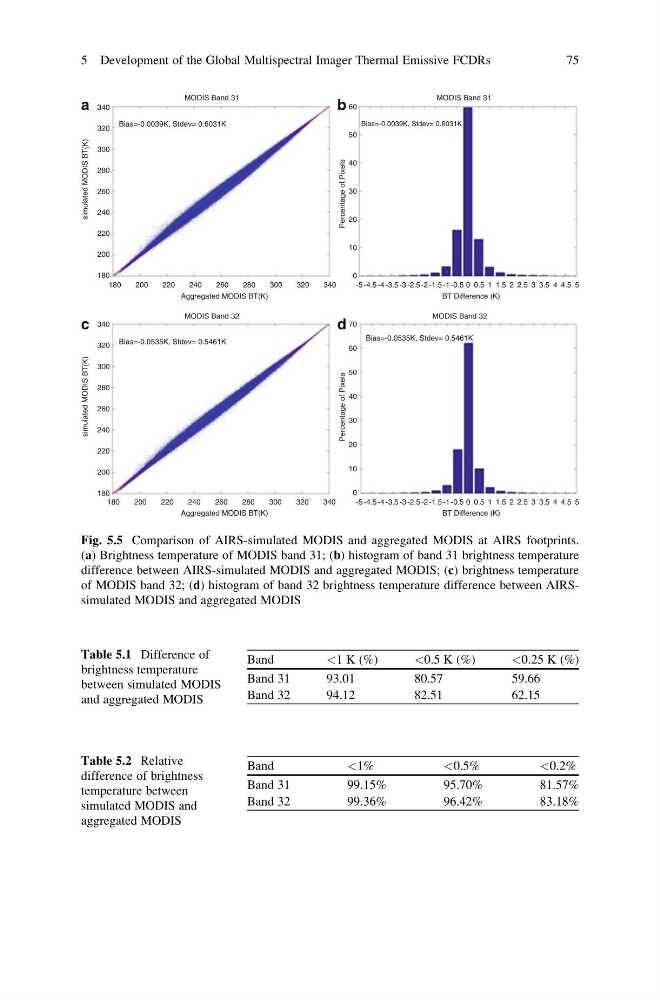

Fig. 5.5 Comparison of AIRS-simulated MODIS and aggregated MODIS at AIRS footprints.
(a) Brightness temperature of MODIS band 31; (b) histogram of band 31 brightness temperature
difference between AIRS-simulated MODIS and aggregated MODIS; (c) brightness temperature
of MODIS band 32; (d) histogram of band 32 brightness temperature difference between AIRSsimulated MODIS and aggregated MODIS
Table 5.1 Difference of
brightness temperature
between simulated MODIS
and aggregated MODIS
Band
<1 K (%)
<0.5 K (%)
<0.25 K (%)
Band 31
93.01
80.57
59.66
Band 32
94.12
82.51
62.15
Table 5.2 Relative
difference of brightness
temperature between
simulated MODIS and
aggregated MODIS
Band
<1%
<0.5%
<0.2%
Band 31
99.15%
95.70%
81.57%
Band 32
99.36%
96.42%
83.18%
