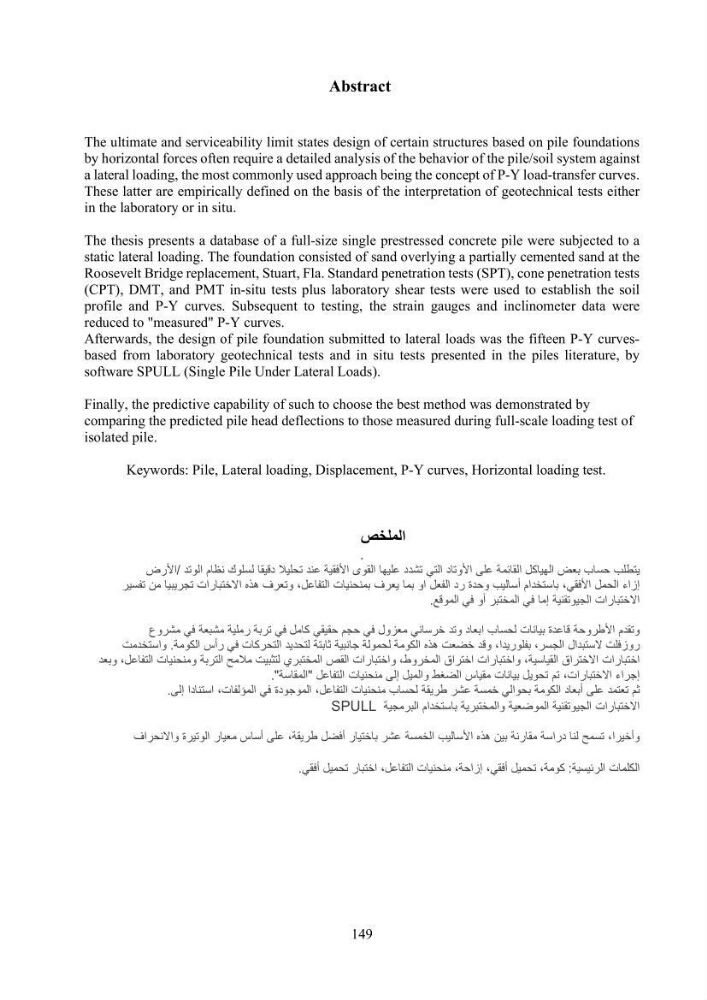

Abstract
The ultimate and serviceability limit states design of certain structures based on pile foundations
by horizontal forces often require a detailed analysis of the behavior of the pile/soil system against
a lateral loading, the most commonly used approach being the concept of P-Y load-transfer curves.
These latter are empirically defined on the basis of the interpretation of geotechnical tests either
in the laboratory or in situ.
The thesis presents a database of a full-size single prestressed concrete pile were subjected to a
static lateral loading. The foundation consisted of sand overlying a partially cemented sand at the
Roosevelt Bridge replacement, Stuart, Fla. Standard penetration tests (SPT), cone penetration tests
(CPT), DMT, and PMT in-situ tests plus laboratory shear tests were used to establish the soil
profile and P-Y curves. Subsequent to testing, the strain gauges and inclinometer data were
reduced to "measured" P-Y curves.
Afterwards, the design of pile foundation submitted to lateral loads was the fifteen P-Y curvesbased from laboratory geotechnical tests and in situ tests presented in the piles literature, by
software SPULL (Single Pile Under Lateral Loads).
Finally, the predictive capability of such to choose the best method was demonstrated by
comparing the predicted pile head deflections to those measured during full-scale loading test of
isolated pile.
Keywords: Pile, Lateral loading, Displacement, P-Y curves, Horizontal loading test.
‫الملخص‬
.
‫/اﻷرض‬ ‫الوتد‬ ‫نظام‬ ‫لسلوك‬ ‫دقيقا‬ ‫تحليﻼ‬ ‫عند‬ ‫اﻷفقية‬ ‫القوى‬ ‫عليها‬ ‫تشدد‬ ‫التي‬ ‫اﻷوتاد‬ ‫علﻰ‬ ‫القائمة‬ ‫الهياكل‬ ‫بعض‬ ‫حساب‬ ‫يتطلب‬
‫تفسير‬ ‫من‬ ‫تجريبيا‬ ‫اﻻختبارات‬ ‫هذه‬ ‫وتعرف‬ ،‫التفاعل‬ ‫بمنحنيات‬ ‫يعرف‬ ‫بما‬ ‫او‬ ‫الفعل‬ ‫رد‬ ‫وحدة‬ ‫أساليب‬ ‫باستخدام‬ ،‫اﻷفقي‬ ‫الحمل‬ ‫إزاء‬
.‫الموقع‬ ‫في‬ ‫أو‬ ‫المختبر‬ ‫في‬ ‫إما‬ ‫الجيوتقنية‬ ‫اﻻختبارات‬
‫مشروع‬ ‫في‬ ‫مشبعة‬ ‫رملية‬ ‫تربة‬ ‫في‬ ‫كامل‬ ‫حقيقي‬ ‫حجم‬ ‫في‬ ‫معزول‬ ‫خرساني‬ ‫وتد‬ ‫ابعاد‬ ‫لحساب‬ ‫بيانات‬ ‫قاعدة‬ ‫اﻷطروحة‬ ‫وتقدم‬
‫واستخدمت‬ . ‫الكومة‬ ‫رأس‬ ‫في‬ ‫التحركات‬ ‫لتحديد‬ ‫ﺛابتة‬ ‫جانبية‬ ‫لحمولة‬ ‫الكومة‬ ‫هذه‬ ‫خضعت‬ ‫وقد‬ ،‫بفلوريدا‬ ،‫الجسر‬ ‫ﻻستبدال‬ ‫روزفلت‬
‫وبعد‬ ،‫التفاعل‬ ‫ومنحنيات‬ ‫التربة‬ ‫مﻼمﺢ‬ ‫لتﺛبيت‬ ‫المختبري‬ ‫القص‬ ‫واختبارات‬ ،‫المخروط‬ ‫اختراق‬ ‫واختبارات‬ ،‫القياسية‬ ‫اﻻختراق‬ ‫اختبارات‬
. "‫"المقاسة‬ ‫التفاعل‬ ‫منحنيات‬ ‫إلﻰ‬ ‫والميل‬ ‫الضغط‬ ‫مقياس‬ ‫بيانات‬ ‫تحويل‬ ‫تم‬ ،‫اﻻختبارات‬ ‫إجراء‬
.‫إلﻰ‬ ‫استنادا‬ ،‫المؤلفات‬ ‫في‬ ‫الموجودة‬ ،‫التفاعل‬ ‫منحنيات‬ ‫لحساب‬ ‫طريقة‬ ‫عشر‬ ‫خمسة‬ ‫بحوالي‬ ‫الكومة‬ ‫أبعاد‬ ‫علﻰ‬ ‫تعتمد‬ ‫ﺛم‬
SPULL ‫البرمجية‬ ‫باستخدام‬ ‫والمختبرية‬ ‫الموضعية‬ ‫الجيوتقنية‬ ‫اﻻختبارات‬
‫واﻻنحراف‬ ‫الوتيرة‬ ‫معيار‬ ‫أساس‬ ‫علﻰ‬ ،‫طريقة‬ ‫أفضل‬ ‫باختيار‬ ‫عشر‬ ‫الخمسة‬ ‫اﻷساليب‬ ‫هذه‬ ‫بين‬ ‫مقارنة‬ ‫دراسة‬ ‫لنا‬ ‫تسمﺢ‬ ،‫وأخيرا‬
.‫أفقي‬ ‫تحميل‬ ‫اختبار‬ ،‫التفاعل‬ ‫منحنيات‬ ،‫إزاحة‬ ،‫أفقي‬ ‫تحميل‬ ،‫كومة‬ :‫الرئيسية‬ ‫الكلمات‬
