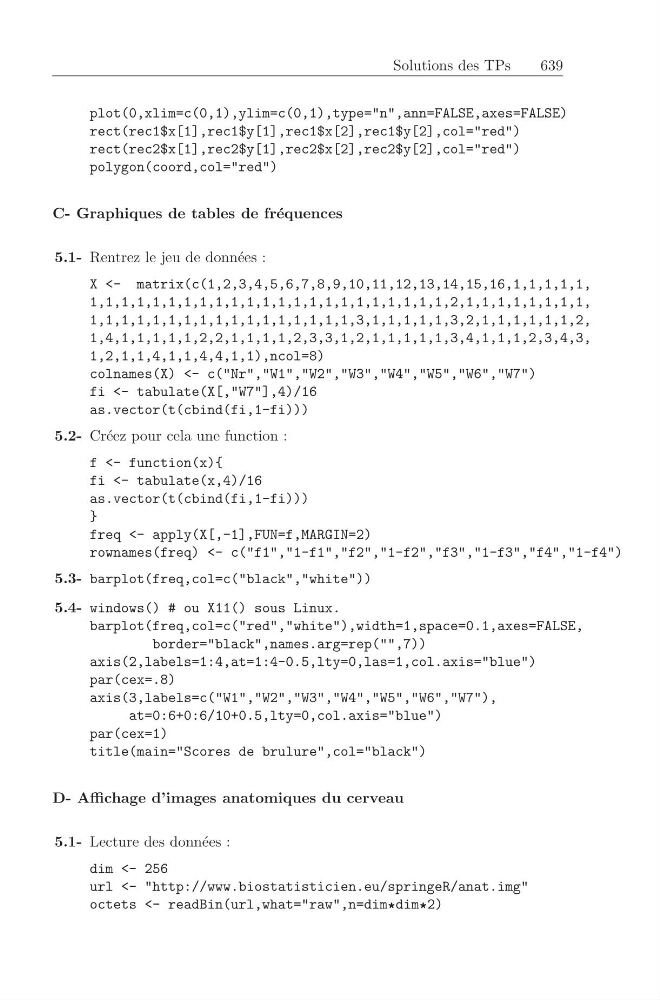

Solutions des TPs
639
plot(0,xlim=c(0,1),ylim=c(0,1),type="n",ann=FALSE,axes=FALSE)
rect(rec1$x[1],rec1$y[1],rec1$x[2],rec1$y[2],col="red")
rect(rec2$x[1],rec2$y[1],rec2$x[2],rec2$y[2],col="red")
polygon(coord,col="red")
C- Graphiques de tables de fr´ equences
5.1- Rentrez le jeu de donn´ ees :
X <- matrix(c(1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,1,1,1,1,1,
1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,2,1,1,1,1,1,1,1,1,
1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,3,1,1,1,1,1,3,2,1,1,1,1,1,1,2,
1,4,1,1,1,1,1,2,2,1,1,1,1,2,3,3,1,2,1,1,1,1,1,3,4,1,1,1,2,3,4,3,
1,2,1,1,4,1,1,4,4,1,1),ncol=8)
colnames(X) <- c("Nr","W1","W2","W3","W4","W5","W6","W7")
fi <- tabulate(X[,"W7"],4)/16
as.vector(t(cbind(fi,1-fi)))
5.2- Cr´ eez pour cela une function :
f <- function(x){
fi <- tabulate(x,4)/16
as.vector(t(cbind(fi,1-fi)))
}
freq <- apply(X[,-1],FUN=f,MARGIN=2)
rownames(freq) <- c("f1","1-f1","f2","1-f2","f3","1-f3","f4","1-f4")
5.3- barplot(freq,col=c("black","white"))
5.4- windows() # ou X11() sous Linux.
barplot(freq,col=c("red","white"),width=1,space=0.1,axes=FALSE,
border="black",names.arg=rep("",7))
axis(2,labels=1:4,at=1:4-0.5,lty=0,las=1,col.axis="blue")
par(cex=.8)
axis(3,labels=c("W1","W2","W3","W4","W5","W6","W7"),
at=0:6+0:6/10+0.5,lty=0,col.axis="blue")
par(cex=1)
title(main="Scores de brulure",col="black")
D- Affichage d’images anatomiques du cerveau
5.1- Lecture des donn´ ees :
dim <- 256
url <- "http://www.biostatisticien.eu/springeR/anat.img"
octets <- readBin(url,what="raw",n=dim * dim * 2)
