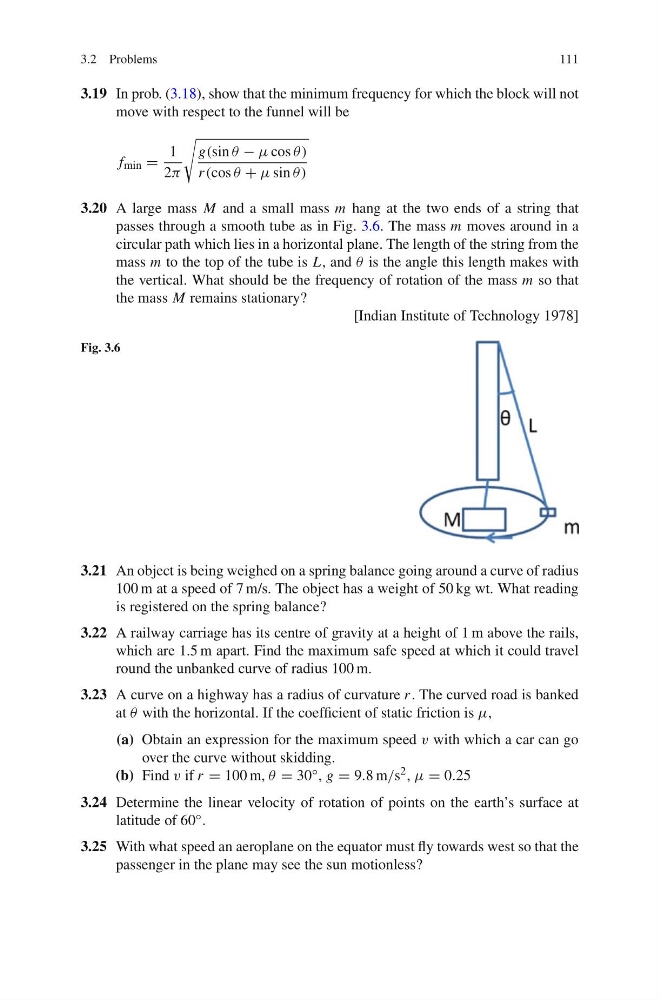

3.2 Problems
111
3.19 In prob. (3.18), show that the minimum frequency for which the block will not
move with respect to the funnel will be
f min =
1
2π
g(sin θ − μ cos θ)
r (cos θ + μ sin θ)
3.20 A large mass M and a small mass m hang at the two ends of a string that
passes through a smooth tube as in Fig. 3.6. The mass m moves around in a
circular path which lies in a horizontal plane. The length of the string from the
mass m to the top of the tube is L, and θ is the angle this length makes with
the vertical. What should be the frequency of rotation of the mass m so that
the mass M remains stationary?
[Indian Institute of Technology 1978]
Fig. 3.6
3.21 An object is being weighed on a spring balance going around a curve of radius
100 m at a speed of 7 m/s. The object has a weight of 50 kg wt. What reading
is registered on the spring balance?
3.22 A railway carriage has its centre of gravity at a height of 1 m above the rails,
which are 1.5 m apart. Find the maximum safe speed at which it could travel
round the unbanked curve of radius 100 m.
3.23 A curve on a highway has a radius of curvature r . The curved road is banked
at θ with the horizontal. If the coefficient of static friction is μ,
(a) Obtain an expression for the maximum speed v with which a car can go
over the curve without skidding.
(b) Find v if r = 100 m, θ = 30 ◦ , g = 9.8 m/s 2 , μ = 0.25
3.24 Determine the linear velocity of rotation of points on the earth’s surface at
latitude of 60 ◦ .
3.25 With what speed an aeroplane on the equator must fly towards west so that the
passenger in the plane may see the sun motionless?
111
