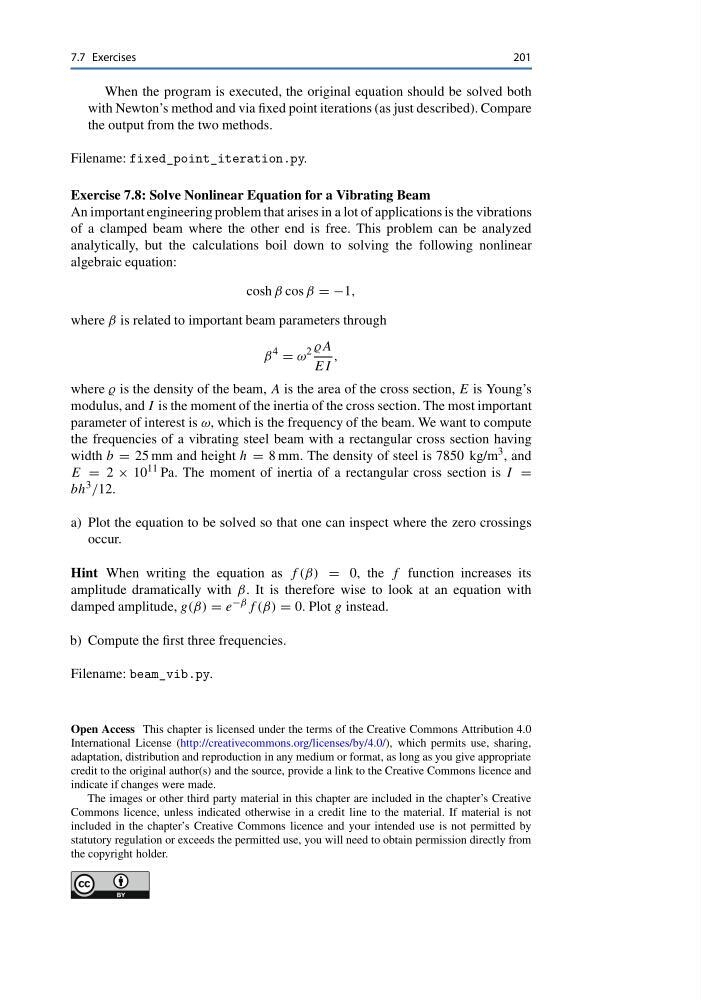

7.7 Exercises
201
When the program is executed, the original equation should be solved both
with Newton’s method and via fixed point iterations (as just described). Compare
the output from the two methods.
Filename: fixed_point_iteration.py.
Exercise 7.8: Solve Nonlinear Equation for a Vibrating Beam
An important engineering problem that arises in a lot of applications is the vibrations
of a clamped beam where the other end is free. This problem can be analyzed
analytically, but the calculations boil down to solving the following nonlinear
algebraic equation:
cosh β cos β = −1,
where β is related to important beam parameters through
β
4
= ω
2
EI
,
where is the density of the beam, A is the area of the cross section, E is Young’s
modulus, and I is the moment of the inertia of the cross section. The most important
parameter of interest is ω, which is the frequency of the beam. We want to compute
the frequencies of a vibrating steel beam with a rectangular cross section having
width b = 25 mm and height h = 8 mm. The density of steel is 7850 kg/m
3 , and
E = 2 × 10 11 Pa. The moment of inertia of a rectangular cross section is I =
bh 3 /12.
a) Plot the equation to be solved so that one can inspect where the zero crossings
occur.
Hint When writing the equation as f (β) = 0, the f function increases its
amplitude dramatically with β. It is therefore wise to look at an equation with
damped amplitude, g(β) = e −β f (β) = 0. Plot g instead.
b) Compute the first three frequencies.
Filename: beam_vib.py.
