MUST: Minimal Unsatisfiable Subsets Enumeration Tool
139
0000
0100
1000
0010
0001
1100
1010
1001
0110
0101
0011
1110
1101
1011
0111
1111

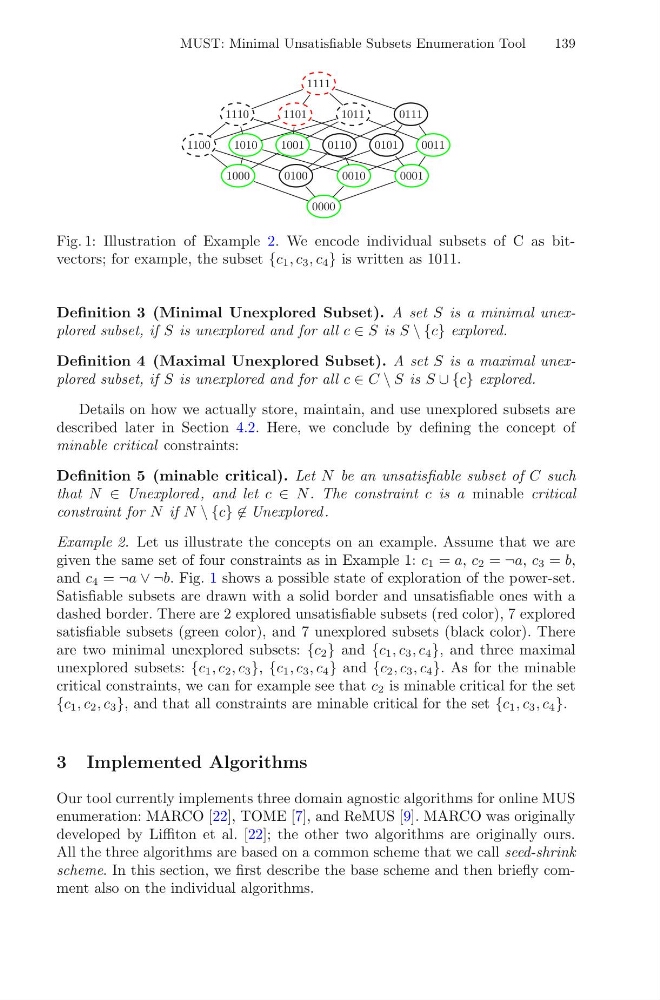

Fig. 1: Illustration of Example 2. We encode individual subsets of C as bitvectors; for example, the subset {c 1 , c 3 , c 4 } is written as 1011.
Definition 3 (Minimal Unexplored Subset). A set S is a minimal unexplored subset, if S is unexplored and for all c ∈ S is S \ {c} explored.
Definition 4 (Maximal Unexplored Subset). A set S is a maximal unexplored subset, if S is unexplored and for all c ∈ C \ S is S ∪ {c} explored.
Details on how we actually store, maintain, and use unexplored subsets are
described later in Section 4.2. Here, we conclude by defining the concept of
minable critical constraints:
Definition 5 (minable critical). Let N be an unsatisfiable subset of C such
that N ∈ Unexplored , and let c ∈ N . The constraint c is a minable critical
constraint for N if N \ {c} } ∈ Unexplored .
Example 2. Let us illustrate the concepts on an example. Assume that we are
given the same set of four constraints as in Example 1: c 1 = a, c 2 = ¬a, c 3 = b,
and c 4 = ¬a ∨ ¬b. Fig. 1 shows a possible state of exploration of the power-set.
Satisfiable subsets are drawn with a solid border and unsatisfiable ones with a
dashed border. There are 2 explored unsatisfiable subsets (red color), 7 explored
satisfiable subsets (green color), and 7 unexplored subsets (black color). There
are two minimal unexplored subsets: {c 2 } and {c 1 , c 3 , c 4 }, and three maximal
unexplored subsets: {c 1 , c 2 , c 3 }, {c 1 , c 3 , c 4 } and {c 2 , c 3 , c 4 }. As for the minable
critical constraints, we can for example see that c 2 is minable critical for the set
{c 1 , c 2 , c 3 }, and that all constraints are minable critical for the set {c 1 , c 3 , c 4 }.
3 Implemented Algorithms
Our tool currently implements three domain agnostic algorithms for online MUS
enumeration: MARCO [22], TOME [7], and ReMUS [9]. MARCO was originally
developed by Liffiton et al. [22]; the other two algorithms are originally ours.
All the three algorithms are based on a common scheme that we call seed-shrink
scheme. In this section, we first describe the base scheme and then briefly comment also on the individual algorithms.
