2.3 Holographic Study with Electrophysiological Control …
147

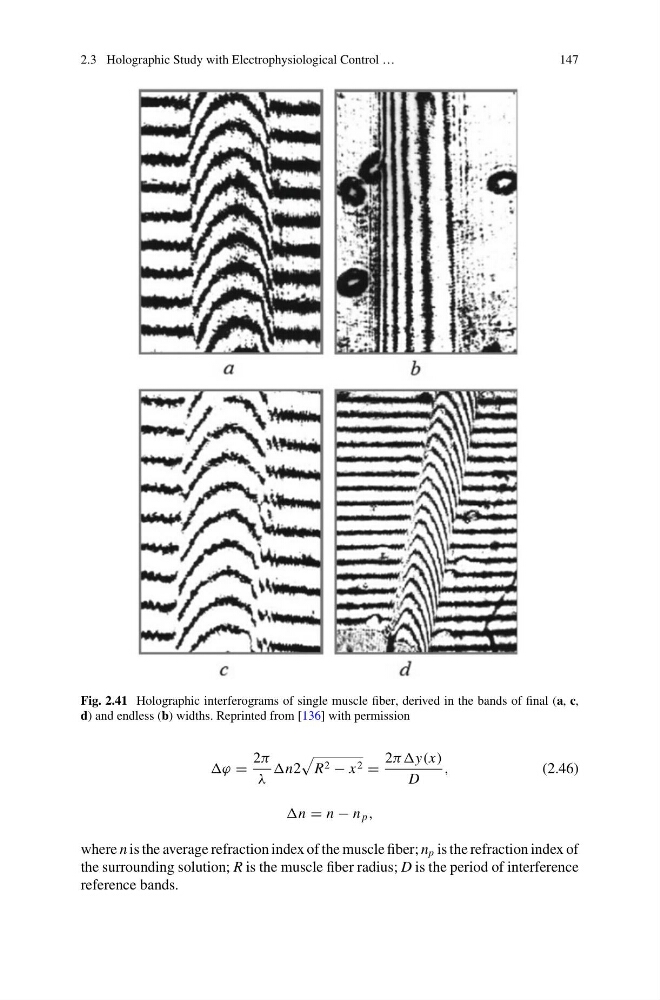

Fig. 2.41 Holographic interferograms of single muscle fiber, derived in the bands of final (a, c,
d) and endless (b) widths. Reprinted from [136] with permission
ϕ =
2π
λ
n2
R 2 − x 2 =
2ππy(x)
D
,
(2.46)
n = n − n p ,
where n is the average refraction index of the muscle fiber; n p is the refraction index of
the surrounding solution; R is the muscle fiber radius; D is the period of interference
reference bands.
