12.6 An Example of a Bianisotropic System
321

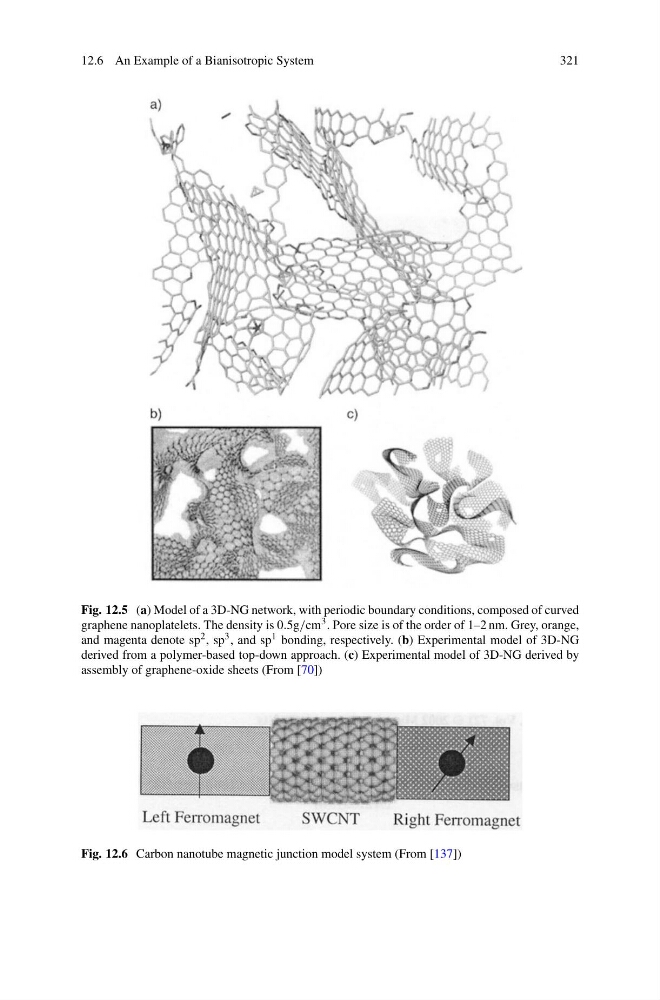

Fig. 12.5 (a) Model of a 3D-NG network, with periodic boundary conditions, composed of curved
graphene nanoplatelets. The density is 0.5g/cm 3 . Pore size is of the order of 1–2 nm. Grey, orange,
and magenta denote sp 2 , sp 3 , and sp 1 bonding, respectively. (b) Experimental model of 3D-NG
derived from a polymer-based top-down approach. (c) Experimental model of 3D-NG derived by
assembly of graphene-oxide sheets (From [70])
Fig. 12.6 Carbon nanotube magnetic junction model system (From [137])
