5.6 Testing and Verification
195
-10
-5
0
5
10
15
20
25
10:48 12:00 13:12 14:24 15:36 16:48 18:00 19:12 20:24 21:36
Time
ZTMR112
ZTMR168
ZTMN031
ZTMC006
ZTMC013
ZTMR169
ZTMR154
ZTMR158

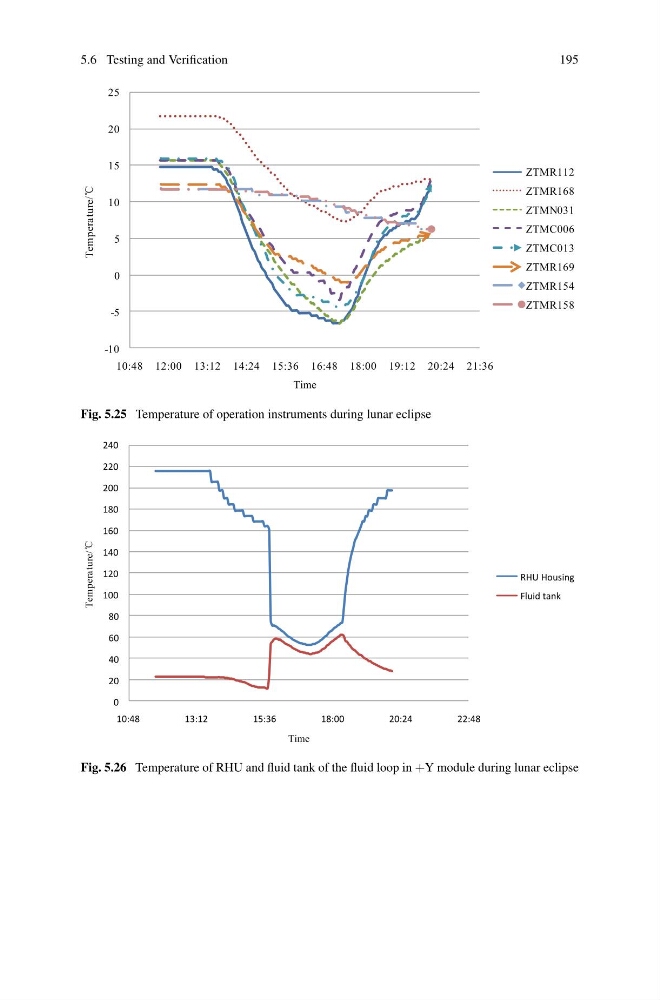

Fig. 5.25 Temperature of operation instruments during lunar eclipse
0
20
40
60
80
100
120
140
160
180
200
220
240
10:48
13:12
15:36
18:00
20:24
22:48
Time
RHU Housing
Fluid tank
Fig. 5.26 Temperature of RHU and fluid tank of the fluid loop in +Y module during lunar eclipse
