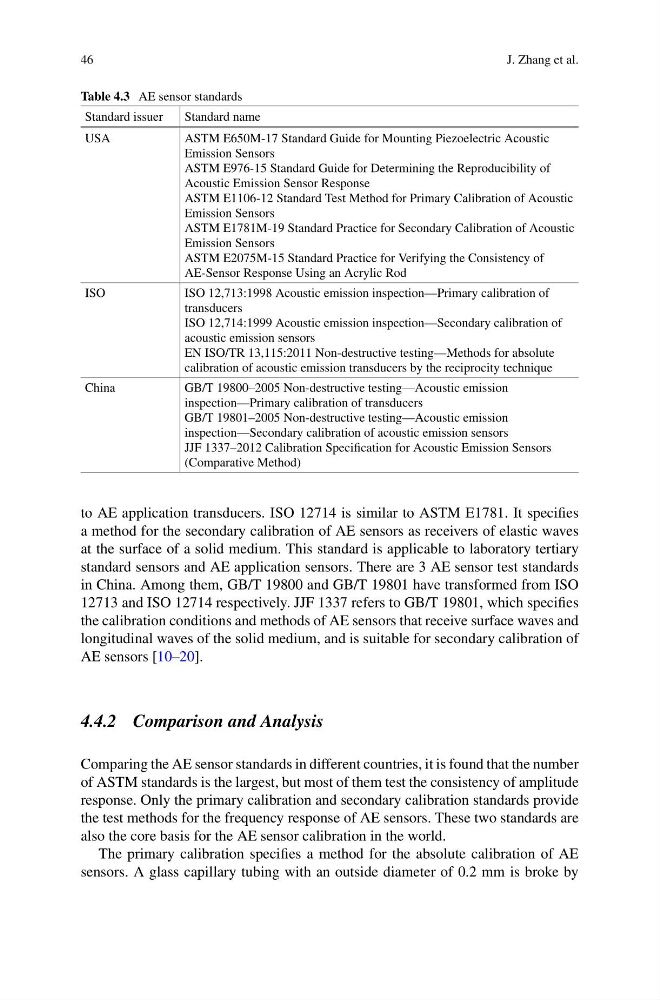

46
J. Zhang et al.
Table 4.3 AE sensor standards
Standard issuer
Standard name
USA
ASTM E650M-17 Standard Guide for Mounting Piezoelectric Acoustic
Emission Sensors
ASTM E976-15 Standard Guide for Determining the Reproducibility of
Acoustic Emission Sensor Response
ASTM E1106-12 Standard Test Method for Primary Calibration of Acoustic
Emission Sensors
ASTM E1781M-19 Standard Practice for Secondary Calibration of Acoustic
Emission Sensors
ASTM E2075M-15 Standard Practice for Verifying the Consistency of
AE-Sensor Response Using an Acrylic Rod
ISO
ISO 12,713:1998 Acoustic emission inspection—Primary calibration of
transducers
ISO 12,714:1999 Acoustic emission inspection—Secondary calibration of
acoustic emission sensors
EN ISO/TR 13,115:2011 Non-destructive testing—Methods for absolute
calibration of acoustic emission transducers by the reciprocity technique
China
GB/T 19800–2005 Non-destructive testing—Acoustic emission
inspection—Primary calibration of transducers
GB/T 19801–2005 Non-destructive testing—Acoustic emission
inspection—Secondary calibration of acoustic emission sensors
JJF 1337–2012 Calibration Specification for Acoustic Emission Sensors
(Comparative Method)
to AE application transducers. ISO 12714 is similar to ASTM E1781. It specifies
a method for the secondary calibration of AE sensors as receivers of elastic waves
at the surface of a solid medium. This standard is applicable to laboratory tertiary
standard sensors and AE application sensors. There are 3 AE sensor test standards
in China. Among them, GB/T 19800 and GB/T 19801 have transformed from ISO
12713 and ISO 12714 respectively. JJF 1337 refers to GB/T 19801, which specifies
the calibration conditions and methods of AE sensors that receive surface waves and
longitudinal waves of the solid medium, and is suitable for secondary calibration of
AE sensors [10–20].
4.4.2 Comparison and Analysis
Comparing the AE sensor standards in different countries, it is found that the number
of ASTM standards is the largest, but most of them test the consistency of amplitude
response. Only the primary calibration and secondary calibration standards provide
the test methods for the frequency response of AE sensors. These two standards are
also the core basis for the AE sensor calibration in the world.
The primary calibration specifies a method for the absolute calibration of AE
sensors. A glass capillary tubing with an outside diameter of 0.2 mm is broke by
