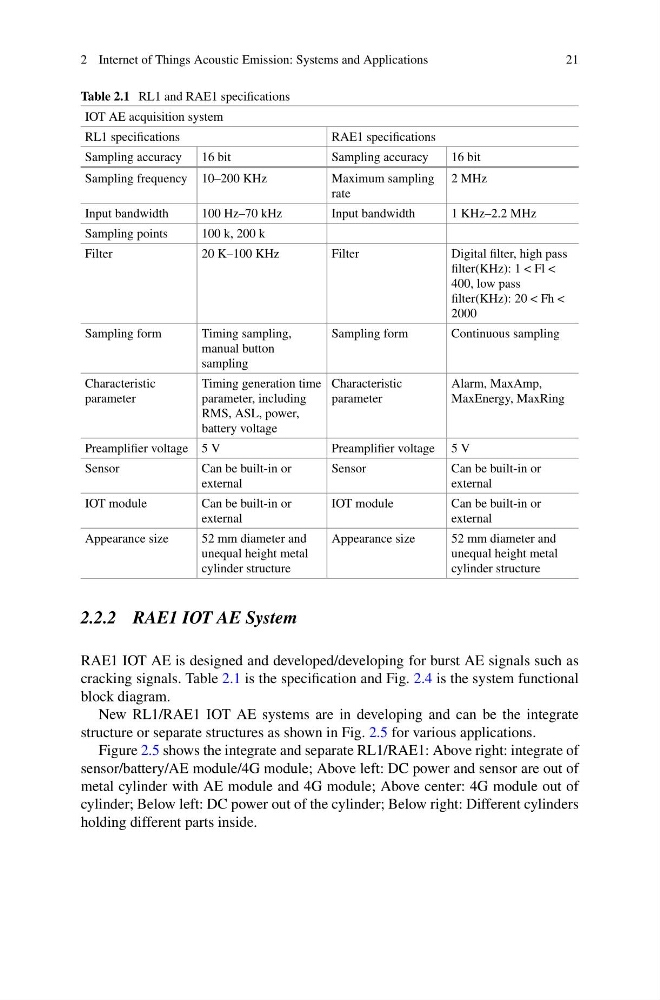

2 Internet of Things Acoustic Emission: Systems and Applications
21
Table 2.1 RL1 and RAE1 specifications
IOT AE acquisition system
RL1 specifications
RAE1 specifications
Sampling accuracy
16 bit
Sampling accuracy
16 bit
Sampling frequency 10–200 KHz
Maximum sampling
rate
2 MHz
Input bandwidth
100 Hz–70 kHz
Input bandwidth
1 KHz–2.2 MHz
Sampling points
100 k, 200 k
Filter
20 K–100 KHz
Filter
Digital filter, high pass
filter(KHz): 1 < Fl <
400, low pass
filter(KHz): 20 < Fh <
2000
Sampling form
Timing sampling,
manual button
sampling
Sampling form
Continuous sampling
Characteristic
parameter
Timing generation time
parameter, including
RMS, ASL, power,
battery voltage
Characteristic
parameter
Alarm, MaxAmp,
MaxEnergy, MaxRing
Preamplifier voltage 5 V
Preamplifier voltage 5 V
Sensor
Can be built-in or
external
Sensor
Can be built-in or
external
IOT module
Can be built-in or
external
IOT module
Can be built-in or
external
Appearance size
52 mm diameter and
unequal height metal
cylinder structure
Appearance size
52 mm diameter and
unequal height metal
cylinder structure
2.2.2 RAE1 IOT AE System
RAE1 IOT AE is designed and developed/developing for burst AE signals such as
cracking signals. Table 2.1 is the specification and Fig. 2.4 is the system functional
block diagram.
New RL1/RAE1 IOT AE systems are in developing and can be the integrate
structure or separate structures as shown in Fig. 2.5 for various applications.
Figure 2.5 shows the integrate and separate RL1/RAE1: Above right: integrate of
sensor/battery/AE module/4G module; Above left: DC power and sensor are out of
metal cylinder with AE module and 4G module; Above center: 4G module out of
cylinder; Below left: DC power out of the cylinder; Below right: Different cylinders
holding different parts inside.
