35 Acoustic Emission Testing of Energy Field Objects
411
a
b
c
d

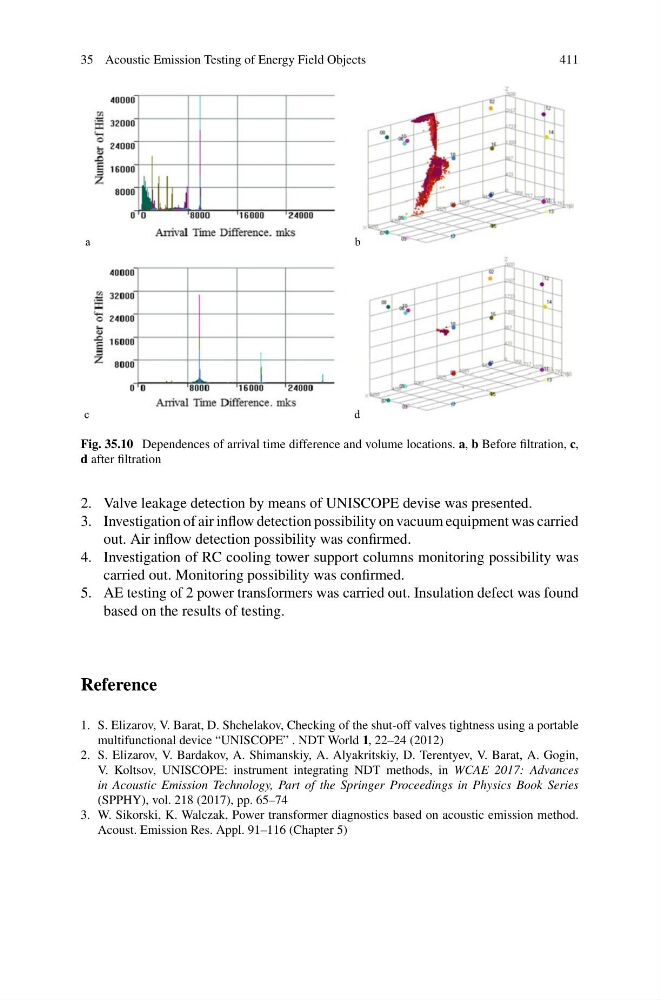

Fig. 35.10 Dependences of arrival time difference and volume locations. a, b Before filtration, c,
d after filtration
2. Valve leakage detection by means of UNISCOPE devise was presented.
3. Investigation of air inflow detection possibility on vacuum equipment was carried
out. Air inflow detection possibility was confirmed.
4. Investigation of RC cooling tower support columns monitoring possibility was
carried out. Monitoring possibility was confirmed.
5. AE testing of 2 power transformers was carried out. Insulation defect was found
based on the results of testing.
Reference
1. S. Elizarov, V. Barat, D. Shchelakov, Checking of the shut-off valves tightness using a portable
multifunctional device “UNISCOPE” . NDT World 1, 22–24 (2012)
2. S. Elizarov, V. Bardakov, A. Shimanskiy, A. Alyakritskiy, D. Terentyev, V. Barat, A. Gogin,
V. Koltsov, UNISCOPE: instrument integrating NDT methods, in WCAE 2017: Advances
in Acoustic Emission Technology, Part of the Springer Proceedings in Physics Book Series
(SPPHY), vol. 218 (2017), pp. 65–74
3. W. Sikorski, K. Walczak, Power transformer diagnostics based on acoustic emission method.
Acoust. Emission Res. Appl. 91–116 (Chapter 5)
