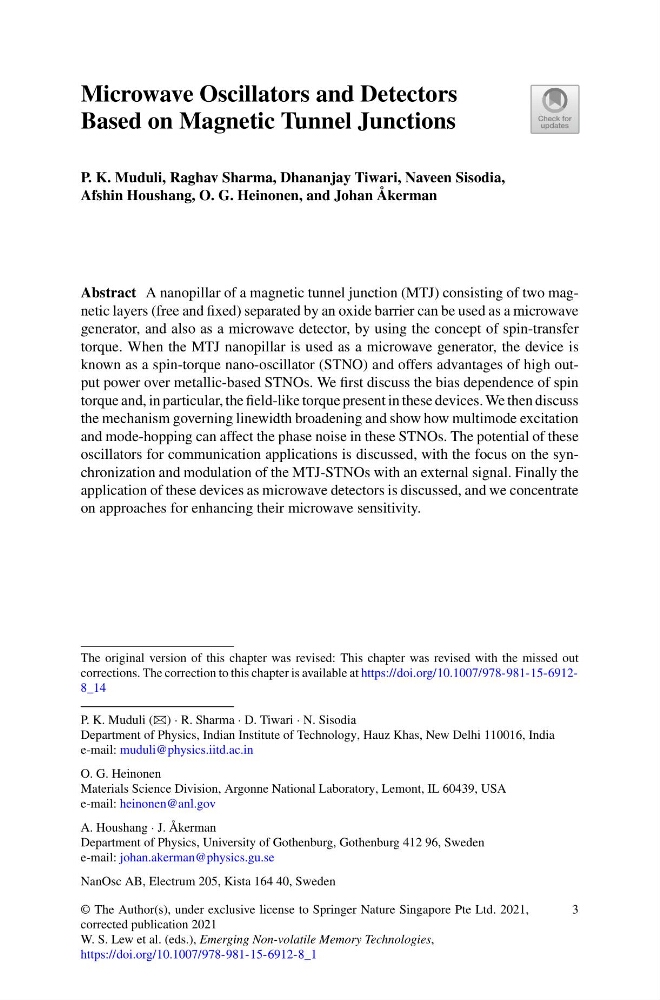

Microwave Oscillators and Detectors
Based on Magnetic Tunnel Junctions
P. K. Muduli, Raghav Sharma, Dhananjay Tiwari, Naveen Sisodia,
Afshin Houshang, O. G. Heinonen, and Johan Åkerman
Abstract A nanopillar of a magnetic tunnel junction (MTJ) consisting of two magnetic layers (free and fixed) separated by an oxide barrier can be used as a microwave
generator, and also as a microwave detector, by using the concept of spin-transfer
torque. When the MTJ nanopillar is used as a microwave generator, the device is
known as a spin-torque nano-oscillator (STNO) and offers advantages of high output power over metallic-based STNOs. We first discuss the bias dependence of spin
torque and, in particular, the field-like torque present in these devices. We then discuss
the mechanism governing linewidth broadening and show how multimode excitation
and mode-hopping can affect the phase noise in these STNOs. The potential of these
oscillators for communication applications is discussed, with the focus on the synchronization and modulation of the MTJ-STNOs with an external signal. Finally the
application of these devices as microwave detectors is discussed, and we concentrate
on approaches for enhancing their microwave sensitivity.
