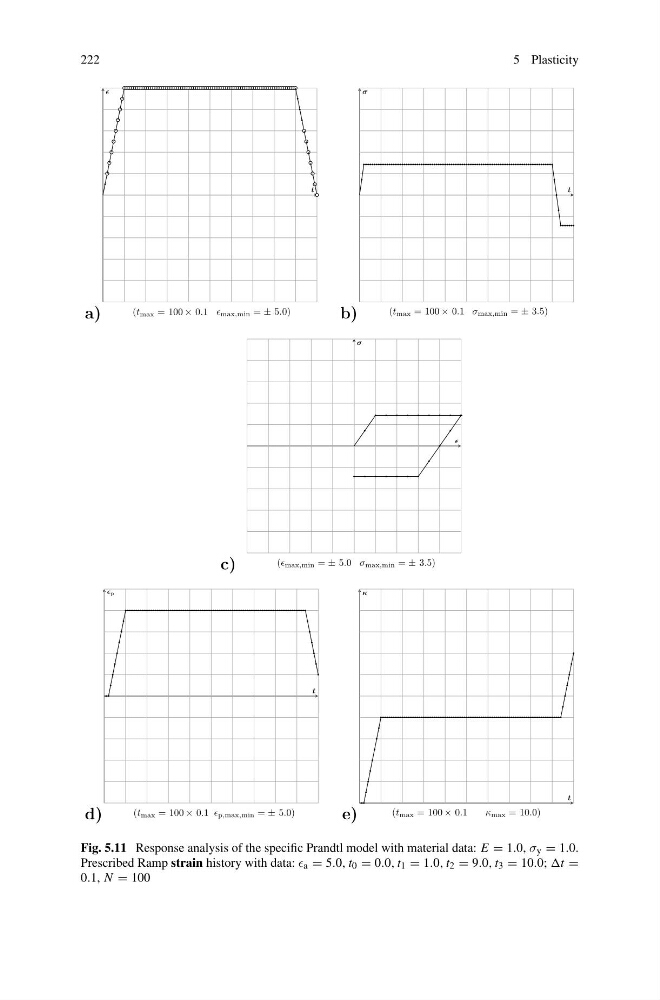

Fig. 5.11 Response analysis of the specific Prandtl model with material data: E = 1.0, σ y = 1.0.
Prescribed Ramp strain history with data: a = 5.0, t 0 = 0.0, t 1 = 1.0, t 2 = 9.0, t 3 = 10.0; =
0.1, N = 100
