5.2 Prandtl Model
219
a)
t
(tmax = 100 × 0.1 max,min = ± 5.0)
b)
t
σ
(tmax = 100 × 0.1 σmax,min = ± 3.5)
c)
σ
( max,min = ± 5.0 σmax,min = ± 3.5)
d)
t
p
(tmax = 100 × 0.1 p,max,min = ± 5.0)
e)
t
κ
(tmax = 100 × 0.1
κmax = 50.0)

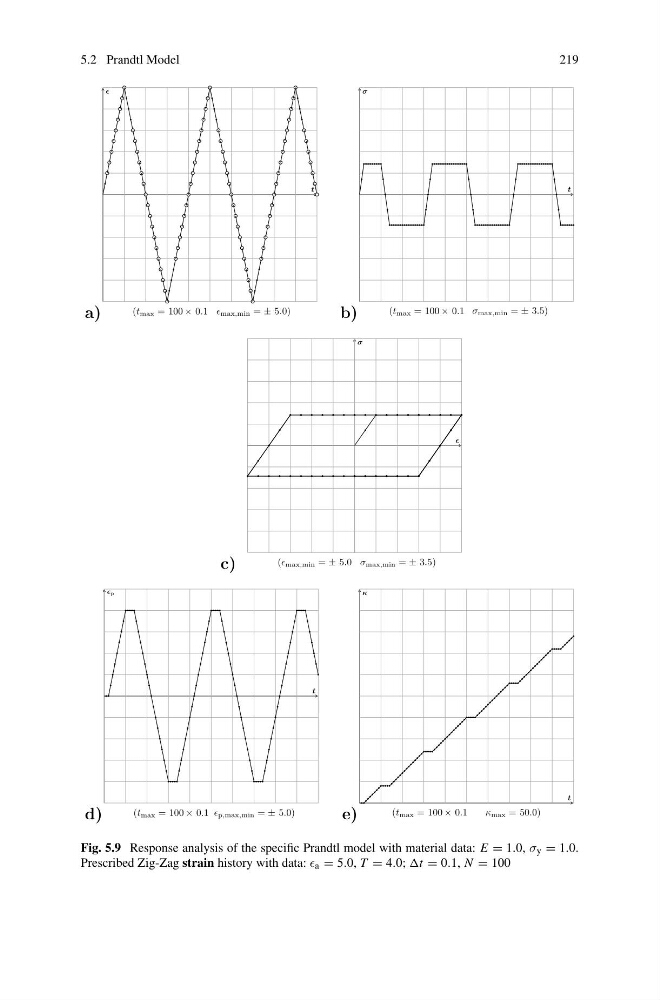

Fig. 5.9 Response analysis of the specific Prandtl model with material data: E = 1.0, σ y = 1.0.
Prescribed Zig-Zag strain history with data: a = 5.0, T = 4.0; = 0.1, N = 100
