4.4 Maxwell Model
159
a)
t
(tmax = 100 × 0.1 max,min = ± 5.0)
b)
t
σ
(tmax = 100 × 0.1 σmax,min = ± 5.0)
c)
t
v
(tmax = 100 × 0.1 p,max,min = ± 5.0)
d)
σ
( max,min = ± 5.0 σmax,min = ± 5.0)
e)
σ
( max,min = ± 5.0 σmax,min = ± 5.0)
f)
σ
( max,min = ± 5.0 σmax,min = ± 5.0)

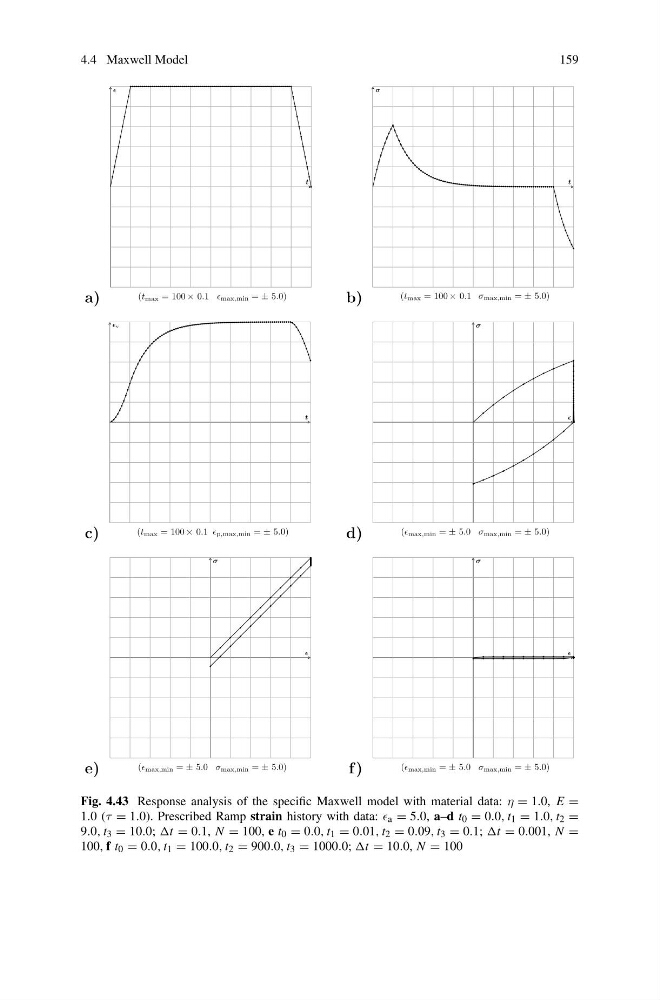

Fig. 4.43 Response analysis of the specific Maxwell model with material data: η = 1.0, E =
1.0 (τ = 1.0). Prescribed Ramp strain history with data: a = 5.0, a–d t 0 = 0.0, t 1 = 1.0, t 2 =
9.0, t 3 = 10.0; = 0.1, N = 100, e t 0 = 0.0, t 1 = 0.01, t 2 = 0.09, t 3 = 0.1; = 0.001, N =
100, f t 0 = 0.0, t 1 = 100.0, t 2 = 900.0, t 3 = 1000.0; = 10.0, N = 100
