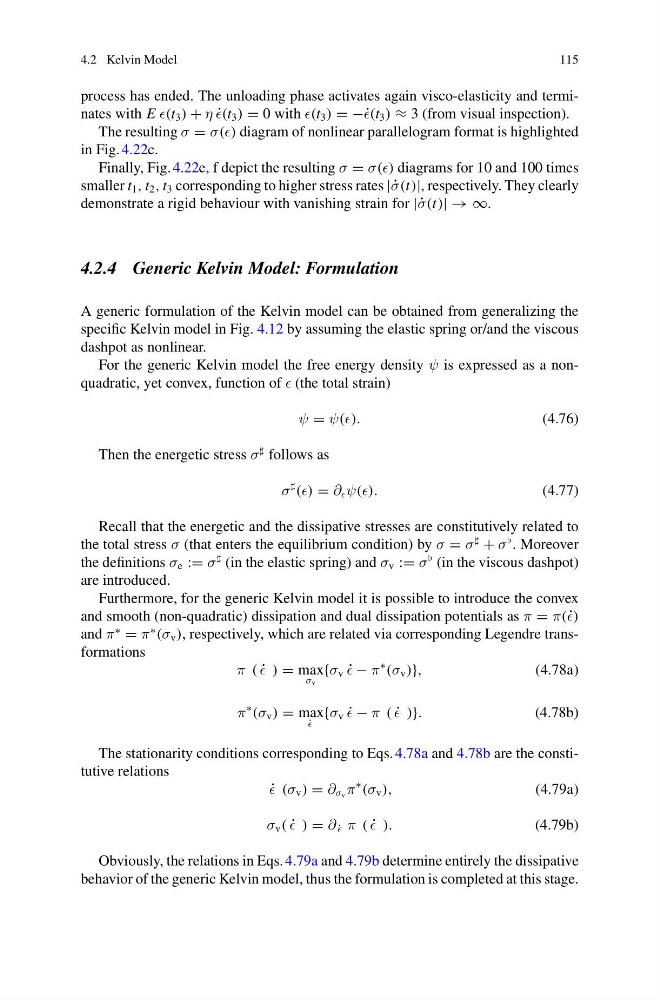

4.2 Kelvin Model
115
process has ended. The unloading phase activates again visco-elasticity and terminates with E (t 3 ) + η ˙
(t 3 ) = 0 with (t 3 ) = −˙ (t 3 ) ≈ 3 (from visual inspection).
The resulting σ = σ() diagram of nonlinear parallelogram format is highlighted
in Fig. 4.22c.
Finally, Fig. 4.22e, f depict the resulting σ = σ() diagrams for 10 and 100 times
smaller t 1 , t 2 , t 3 corresponding to higher stress rates | ˙
σ(t)|, respectively. They clearly
demonstrate a rigid behaviour with vanishing strain for | ˙
σ(t)| → ∞.
4.2.4 Generic Kelvin Model: Formulation
A generic formulation of the Kelvin model can be obtained from generalizing the
specific Kelvin model in Fig. 4.12 by assuming the elastic spring or/and the viscous
dashpot as nonlinear.
For the generic Kelvin model the free energy density ψ is expressed as a nonquadratic, yet convex, function of (the total strain)
ψ = ψ().
(4.76)
Then the energetic stress σ
follows as
σ
() = ∂ ψ().
(4.77)
Recall that the energetic and the dissipative stresses are constitutively related to
the total stress σ (that enters the equilibrium condition) by σ = σ
+ σ
. Moreover
the definitions σ e := σ
(in the elastic spring) and σ v := σ
(in the viscous dashpot)
are introduced.
Furthermore, for the generic Kelvin model it is possible to introduce the convex
and smooth (non-quadratic) dissipation and dual dissipation potentials as π = π(˙ )
and π
∗
= π
∗
(σ v ), respectively, which are related via corresponding Legendre transformations
π ( ˙
) = max
σ v
{σ v ˙
− π
∗
(σ v )},
(4.78a)
π
∗
(σ v ) = max
˙
{σ v ˙
− π ( ˙
)}.
(4.78b)
The stationarity conditions corresponding to Eqs. 4.78a and 4.78b are the constitutive relations
˙
(σ v ) = ∂ σ v π
∗
(σ v ),
(4.79a)
σ v ( ˙
) = ∂ ˙
π ( ˙
).
(4.79b)
Obviously, the relations in Eqs. 4.79a and 4.79b determine entirely the dissipative
behavior of the generic Kelvin model, thus the formulation is completed at this stage.
