4.1 Newton Model
95
a)
t
σ
(tmax = 100 × 0.1 σmax,min = ± 5.0)
b)
t
(tmax = 100 × 0.1 max,min = ± 50.0)
c)
σ
( max,min = ± 50.0 σmax,min = ± 5.0)
d)
t
v
(tmax = 100 × 0.1 p,max,min = ± 50.0)
e)
σ
( max,min = ± 50.0 σmax,min = ± 5.0)
f)
σ
( max,min = ± 50.0 σmax,min = ± 5.0)

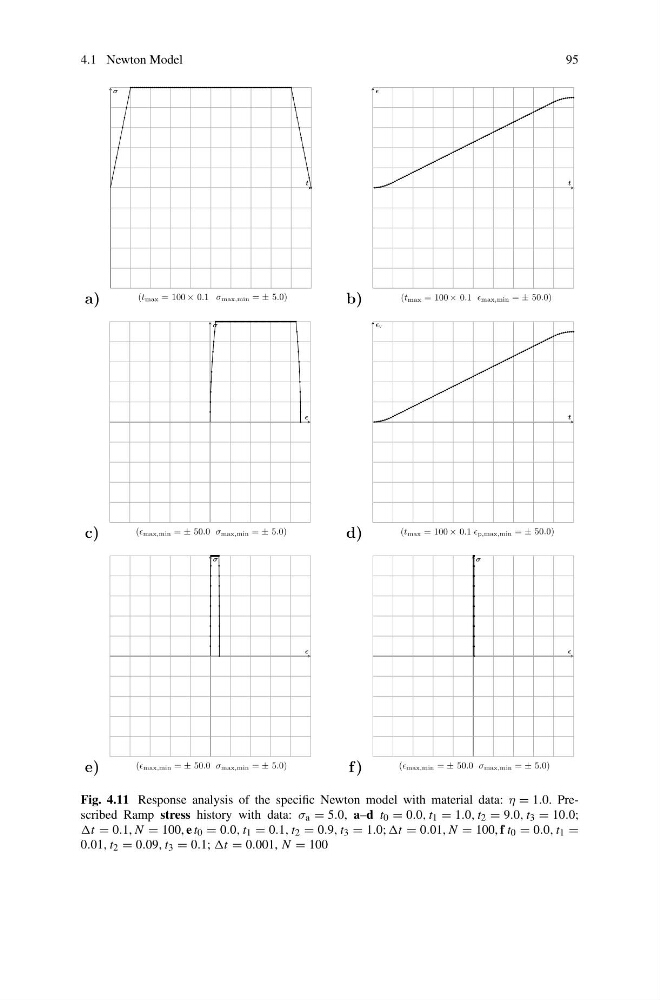

Fig. 4.11 Response analysis of the specific Newton model with material data: η = 1.0. Prescribed Ramp stress history with data: σ a = 5.0, a–d t 0 = 0.0, t 1 = 1.0, t 2 = 9.0, t 3 = 10.0;
= 0.1, N = 100, e t 0 = 0.0, t 1 = 0.1, t 2 = 0.9, t 3 = 1.0; = 0.01, N = 100, f t 0 = 0.0, t 1 =
0.01, t 2 = 0.09, t 3 = 0.1; = 0.001, N = 100
