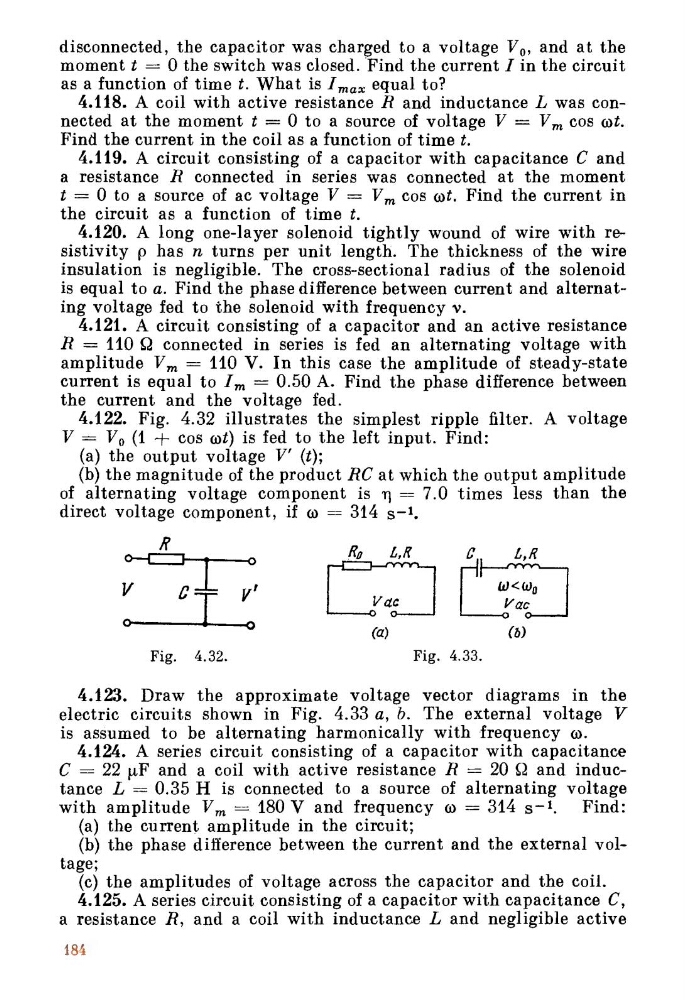

disconnected, the capacitor was charged to a voltage Vo, and at the
moment t = 0 the switch was closed. Find the current I in the circuit
as a function of time t. What is /max equal to?
4.118. A coil with active resistance R and inductance L was connected at the moment t = 0 to a source of voltage V = V m cos cot.
Find the current in the coil as a function of time t.
4.119. A circuit consisting of a capacitor with capacitance C and
a resistance R connected in series was connected at the moment
t = 0 to a source of ac voltage V = V„,, cos cot. Find the current in
the circuit as a function of time t.
4.120. A long one-layer solenoid tightly wound of wire with resistivity p has n turns per unit length. The thickness of the wire
insulation is negligible. The cross-sectional radius of the solenoid
is equal to a. Find the phase difference between current and alternating voltage fed to the solenoid with frequency v.
4.121. A circuit consisting of a capacitor and an active resistance
R = 110 Q connected in series is fed an alternating voltage with
amplitude Vn, = 110 V. In this case the amplitude of steady-state
current is equal to /7„ = 0.50 A. Find the phase difference between
the current and the voltage fed.
4.122. Fig. 4.32 illustrates the simplest ripple filter. A voltage
V = V 0 (1. + cos cot) is fed to the left input. Find:
(a) the output voltage V' (t);
(b) the magnitude of the product RC at which the output amplitude
of alternating voltage component is i = 7.0 times less than the
direct voltage component, if co = 314 s-1.
V
c T
0
0
(a)
(b)
Fig. 4.32.
Fig. 4.33.
4.123. Draw the approximate voltage vector diagrams in the
electric circuits shown in Fig. 4.33 a, b. The external voltage V
is assumed to be alternating harmonically with frequency co.
4.124. A series circuit consisting of a capacitor with capacitance
C = 22 p, F and a coil with active resistance R = 20 Q and inductance L = 0.35 H is connected to a source of alternating voltage
with amplitude V,T, = 180 V and frequency co = 314 s-1. Find:
(a) the current amplitude in the circuit;
(b) the phase difference between the current and the external voltage;
(c) the amplitudes of voltage across the capacitor and the coil.
4.125. A series circuit consisting of a capacitor with capacitance C,
a resistance R, and a coil with inductance L and negligible active
L,R
L, R
li)
Vac
184
