119
fi nally displayed in html pages for instant opening for a quick reference, then the
user can print it as a pdf.
5.3.5 The DSS
By clicking the icon in the middle of the screen, user is led within the DSS.
By clicking on the different menu items the user can simulate the approach to his
pilot study based on the data we gathered in our 8 pilot tests (Fig. 5.10 ).
This section has 5 menus:
• Location: an interactive Central Europe Map allows the user to select the region
of interest, as shown the picture below (Fig. 5.11 )
• Scale of intervention: the user can choose between two option, building or urban;
• Typology of intervention: the choice here is between:
– Menu item A)
• Existing structure;
• New construction.
– Menu item B)

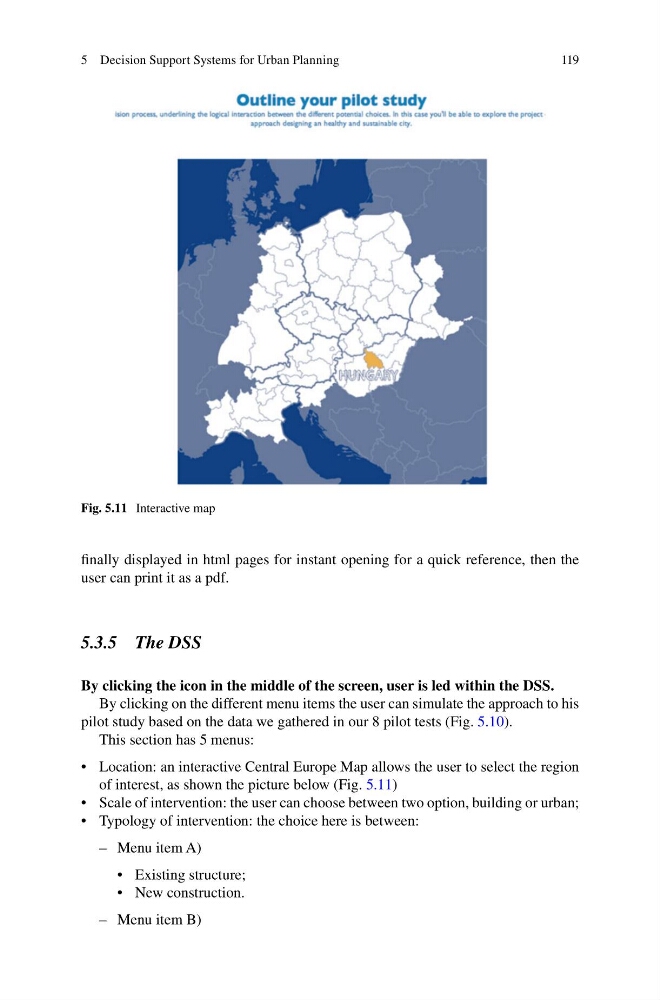

Fig. 5.11 Interactive map
