56
3 Investigation of Euler–Bernoulli Beams in the Elastic Range

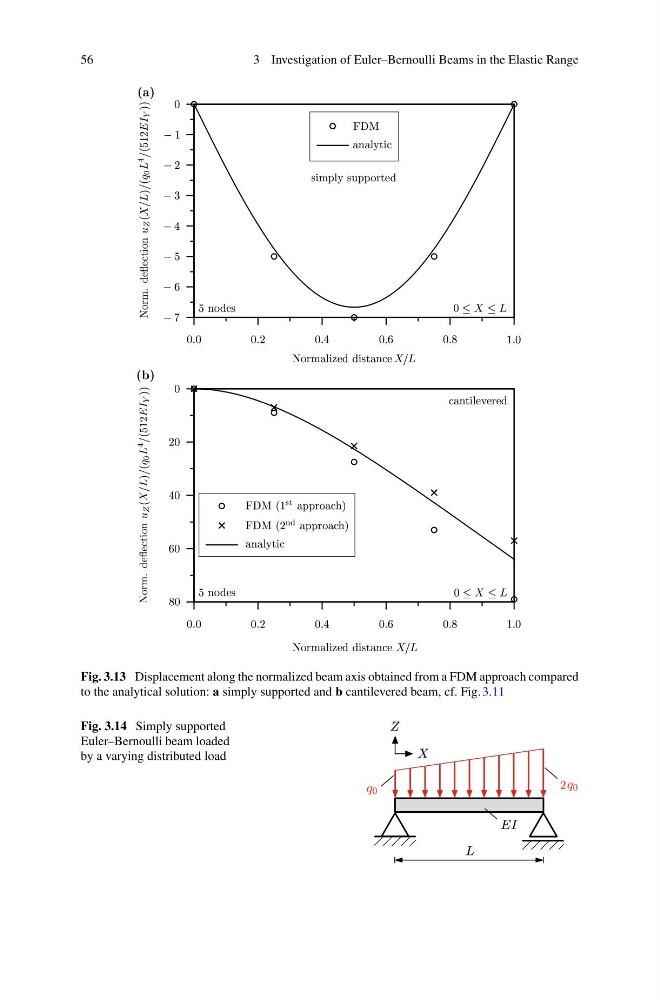

Fig. 3.13 Displacement along the normalized beam axis obtained from a FDM approach compared
to the analytical solution: a simply supported and b cantilevered beam, cf. Fig. 3.11
Fig. 3.14 Simply supported
Euler–Bernoulli beam loaded
by a varying distributed load
