5G‐Berlin program in Germany, and it “is a ETSI NFV compliant MANO framework.
It enables virtual Network Services deployments on top of heterogeneous NFV
Infrastructures. ” While these MANO projects are still new at the time of writing, they
complete the OPNFV stack so that an end‐to‐end NFV deployment reference platform
is now possible in open‐source through OPNFV.
1
Figure 15.8
2
illustrates an end‐to‐end use case for an operator to deploy residential
vCPE service with OPNFV integrated with OPEN‐O VNF Manager and Orchestrator.
This end‐to‐end network service slicing capability allows a common 5G network
infrastructure to efficiently support multiple partners, multiple market segments, and
use cases.
15.7 NFV‐based Security Services
In the last part of this chapter, we will highlight several exciting advances in recent years
regarding NFV‐based security service. We call a new security service NFV‐based if
the technology has been made fundamentally more potent and impactful because of
the development of NFV. These technologies may not be entirely new, but their
full potential was not realized until NFV started to transform telecom industry
infrastructure, services, and business models.
1 Other open-source MANO projects such as AT & T’s ECOMP [41] and Open Source MANO (OSM) [42]
have not been integrated with OPNFV at the time of writing. For that reason alone, we choose not to
discuss them in this section. Right before finalizing this chapter, we have just learnt that the Linux
Foundation had announced a merger between Open-O and ECOMP [44].
2 Derived from image by OPNFV Opera project [15] and Open-O project [31] under CC-BY 3.0.
NFVO API’s
VNF Packages &
Catalog
VNF Life Cycle
Permissions
Resource
Management
VNFM API’s
VNF Life Cycle
Management
VIM API’s
Virtual Infrastructure
G-VNFM 1
OPEN-O
G-VNFM 2
VIM 2 (OS 2)
VIM 1 (OS 1)
OLT
Residential
Data plane:
Overlay Network->
Underlay Network->
pBRAS (CP)
VLAN
VLAN
VLAN
MPLS-TP L3VPN
To W A N
VLAN
VXLAN
VXLAN (SFC)
GW
Telco Cloud Edge
Metro Transport
Control Flow
Telco Cloud Core
SPTN
vNAT
vFW
vLB
vBRAS(CP)
OS
OS
OS
OS
pCPE

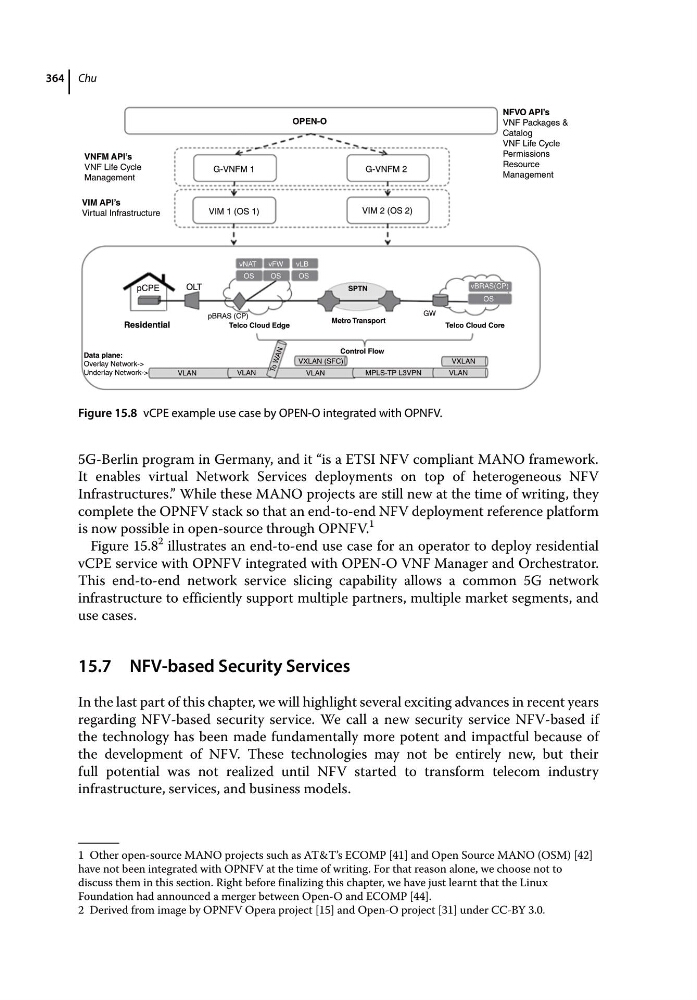

Figure 15.8 vCPE example use case by OPEN‐O integrated with OPNFV.
