“HELIUM”
LEGEND
DLUX
VTN
Coordinator
Base Network Service Functions
Topology
Manager
GBP Renderers
OVSDB
NETCONF
SNBI
LISP
BGP
PCEP
SNMP
Plugin20C
Southbound Interfaces
& Protocol Plugins
Data Place Elements
(Virtual Switches, Physical
Device Interfaces)
Additional Virtual &
Physical Devices
Open
vSwitches
OpenFlow Enabled
Devices
PCMM/COPS
Stats
Manager
Switch
Manager
FRM
Host
Tracker
OpenStack Service
AAA - AuthN Filter
OpenDaylight APIs (REST)
GBP
Service
SFC
AAA
DOCSIS
Abstraction
Controller
Platform
SDNI
Aggregator
SNBI
Service
LISP
Service
OVSDB
Neutron
VTN
Manager
Service Abstraction Layer (SAL)
(Plugin Manager, Capability Abstractions, Flow Programming, Inventory, etc.)
Plugin20C
L2
Switch
OpenStack
Neutron
AAA: Authentication, Authorization & Accounting
AuthN: Authentication
BGP: Border Gateway Protocol
COPS: Common Open Policy Service
DLUX: OpenDaylight User Experience
DDoS: Distributed Denial Of Service
DOCSIS: Data Over Cable Service Interface Specification
FRM: Forwarding Rules Manager
GBP: Group Based Policy
LISP: Locator/Identifier Separation Protocol
OVSDB: Open vSwitch DataBase Protocol
PCEP: Path Computation Element Communication Protocol
PCMM: Packet Cable MultiMedia
Plugin2OC: Plugin To OpenContrail
SDNI: SDN Interface (Cross-Controller Federation)
SFC: Service Function Chaining
SNBI: Secure Network Bootstrapping Infrastructure
SNMP: Simple Network Management Protocol
TTP: Table Type Patterns
VTN: Virtual Tenant Network
SDNI
Wrapper
DDoS
Protection
Network Applications
Orchestrations & Services
OpenFlow
1.0 1.3 TTP

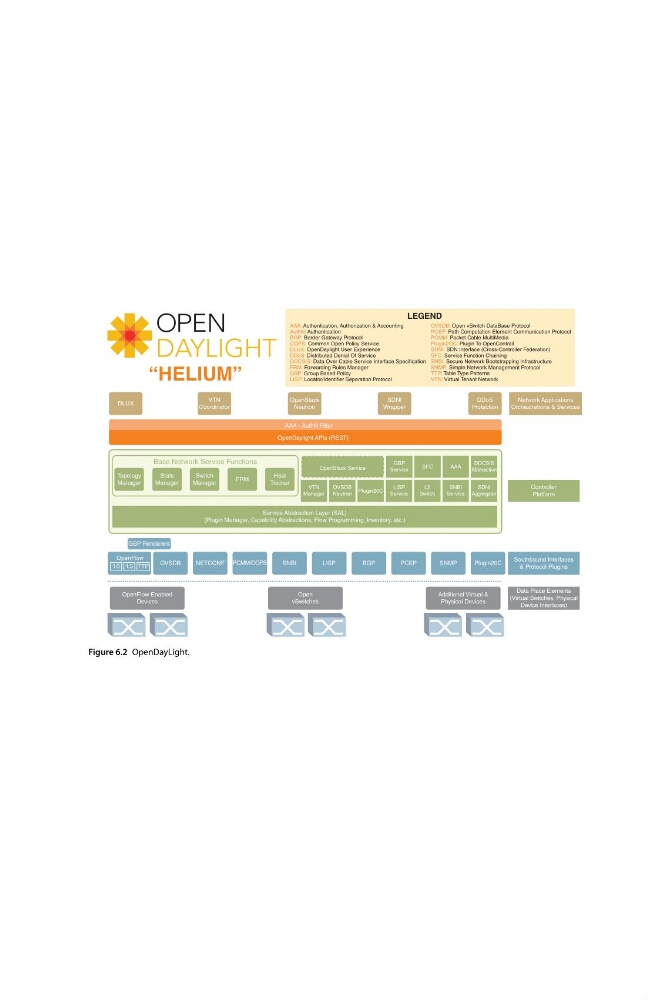

Figure 6.2 OpenDayLight.
