16 Mitigating Engine Exhaust Emission …
173

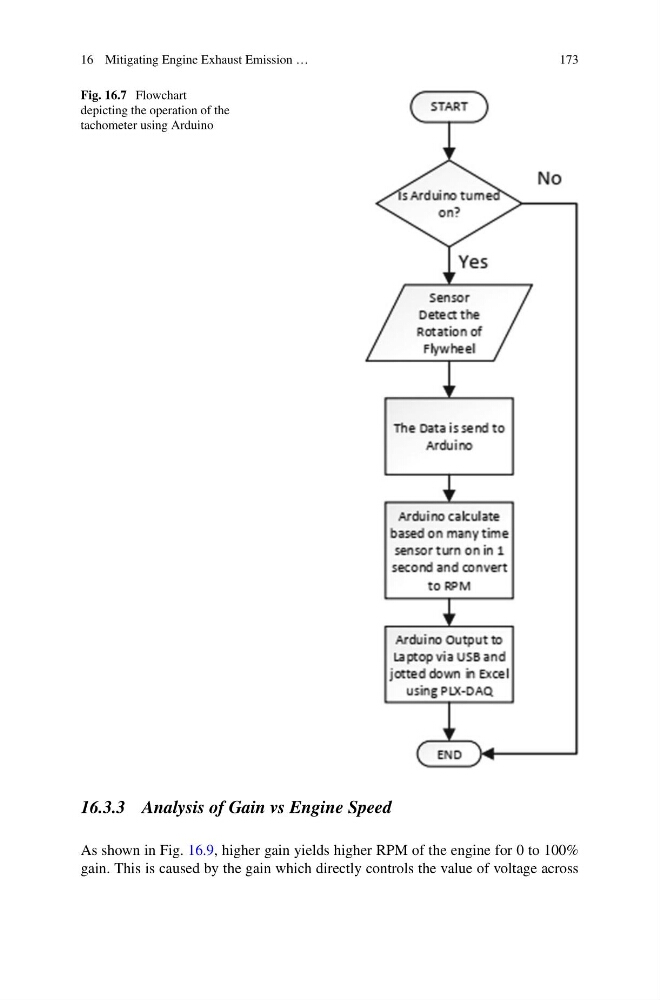

Fig. 16.7 Flowchart
depicting the operation of the
tachometer using Arduino
16.3.3 Analysis of Gain vs Engine Speed
As shown in Fig. 16.9, higher gain yields higher RPM of the engine for 0 to 100%
gain. This is caused by the gain which directly controls the value of voltage across
