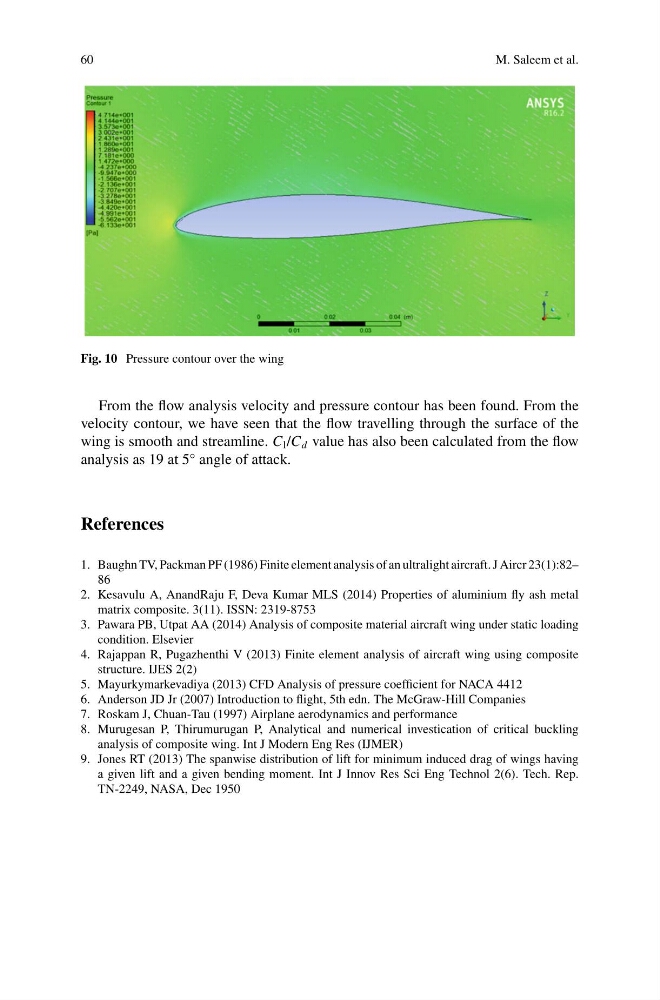

Fig. 10 Pressure contour over the wing
From the flow analysis velocity and pressure contour has been found. From the
velocity contour, we have seen that the flow travelling through the surface of the
wing is smooth and streamline. C l /C d value has also been calculated from the flow
analysis as 19 at 5° angle of attack.
