is a segment which takes fundamental job in a motor execution, the illustration
subtleties are kept up secret. By replicating the shape of the gum or wax formed
chamber with the aid of computer numerical control machine and it is altered by
setting the object to be machined to achieve the chamber profile, this framework is
followed in industry to create chambers. By this present Reverse methodology, the
worth and surface finishing of chamber is somewhat beneath normal but not prepared
to make a virtual model or a computer-aided design data base. So it makes a way to
deal with under go investigate in this area to success extraordinary value, incredible
surface fruition and accurate crown profile of chambers and besides to make a virtual
chamber to keep up the CAD data base.
3 The Planned Reverse Engineering Method
The planned RE method utilizes a coordinate measuring machine to digitize the
cylinder, implicit strong cylinder model can be created by utilizing this framework
and deviation examination of the cylinder is additionally assessed. This procedure
will defeat the current framework. Precision of the cylinder is likewise expanded and
surface completion is prevalently great.
3.1 Digitizer Fixing Method with CMM
CMM is utilized to digitize the cylinder also the directions are set to any of the nearby
orientation. The Renishaw contact trigger test was utilized to digitize the directions.
The precision of the directions depends on the kind of surface, framework exactness,
part unpredictability and rate of estimation. The test takes one information position
at once by contacting a section or by examining a surface by illustration the test
along the item Fig. 1. The CMMs as a rule play out this sort of digitizing. While
digitizing a cylinder contains almost 1500–2000 points, it takes about a large portion
of an hour to digitize a piston Table 1.

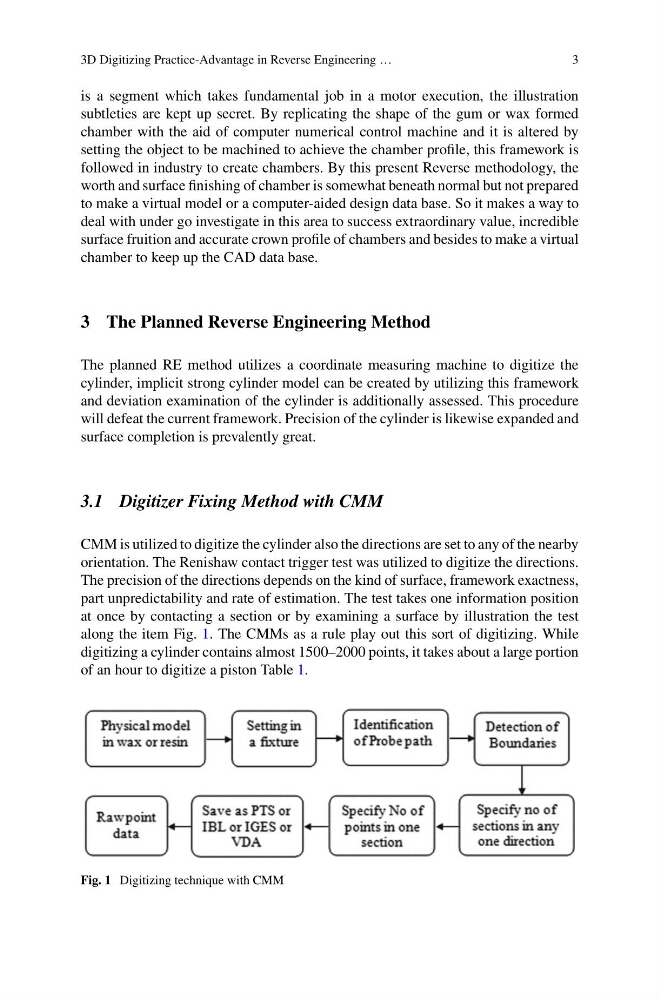

Fig. 1 Digitizing technique with CMM
