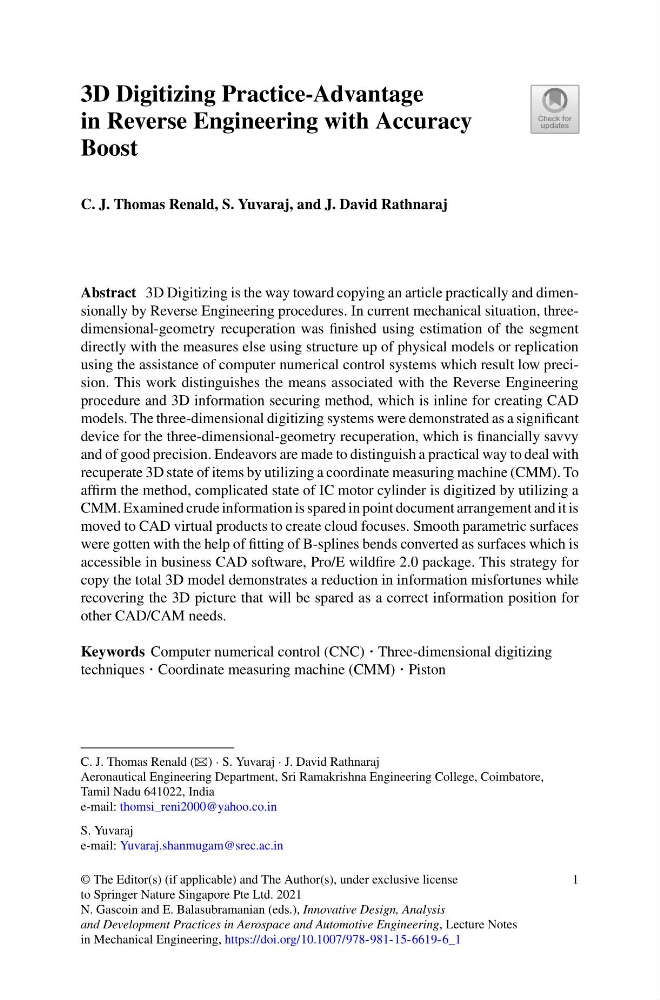

3D Digitizing Practice-Advantage
in Reverse Engineering with Accuracy
Boost
C. J. Thomas Renald, S. Yuvaraj, and J. David Rathnaraj
Abstract 3D Digitizing is the way toward copying an article practically and dimensionally by Reverse Engineering procedures. In current mechanical situation, threedimensional-geometry recuperation was finished using estimation of the segment
directly with the measures else using structure up of physical models or replication
using the assistance of computer numerical control systems which result low precision. This work distinguishes the means associated with the Reverse Engineering
procedure and 3D information securing method, which is inline for creating CAD
models. The three-dimensional digitizing systems were demonstrated as a significant
device for the three-dimensional-geometry recuperation, which is financially savvy
and of good precision. Endeavors are made to distinguish a practical way to deal with
recuperate 3D state of items by utilizing a coordinate measuring machine (CMM). To
affirm the method, complicated state of IC motor cylinder is digitized by utilizing a
CMM. Examined crude information is spared in point document arrangement and it is
moved to CAD virtual products to create cloud focuses. Smooth parametric surfaces
were gotten with the help of fitting of B-splines bends converted as surfaces which is
accessible in business CAD software, Pro/E wildfire 2.0 package. This strategy for
copy the total 3D model demonstrates a reduction in information misfortunes while
recovering the 3D picture that will be spared as a correct information position for
other CAD/CAM needs.
Keywords Computer numerical control (CNC) · Three-dimensional digitizing
techniques · Coordinate measuring machine (CMM) · Piston
C. J. Thomas Renald (B) · S. Yuvaraj · J. David Rathnaraj
Aeronautical Engineering Department, Sri Ramakrishna Engineering College, Coimbatore,
Tamil Nadu 641022, India
e-mail: thomsi_reni2000@yahoo.co.in
S. Yuvaraj
e-mail: Yuvaraj.shanmugam@srec.ac.in
© The Editor(s) (if applicable) and The Author(s), under exclusive license
to Springer Nature Singapore Pte Ltd. 2021
N. Gascoin and E. Balasubramanian (eds.), Innovative Design, Analysis
and Development Practices in Aerospace and Automotive Engineering, Lecture Notes
in Mechanical Engineering, https://doi.org/10.1007/978-981-15-6619-6_1
