509
The converter has a mechanical clutch (lockup), which, when the load is stable, locks the
converter pump mechanically.
2.4 Plan of experimental work
In order to prove the efficiency of lock up system, a plan for experimental works has been
prepared. An identification of lock up system’s influence on machine operation in real environment was the main target. We would like to check if the usage of the lock up system
affects:
• Fuel consumption
• Averaged speed of machine during transporting materials
• braking performance of the engine

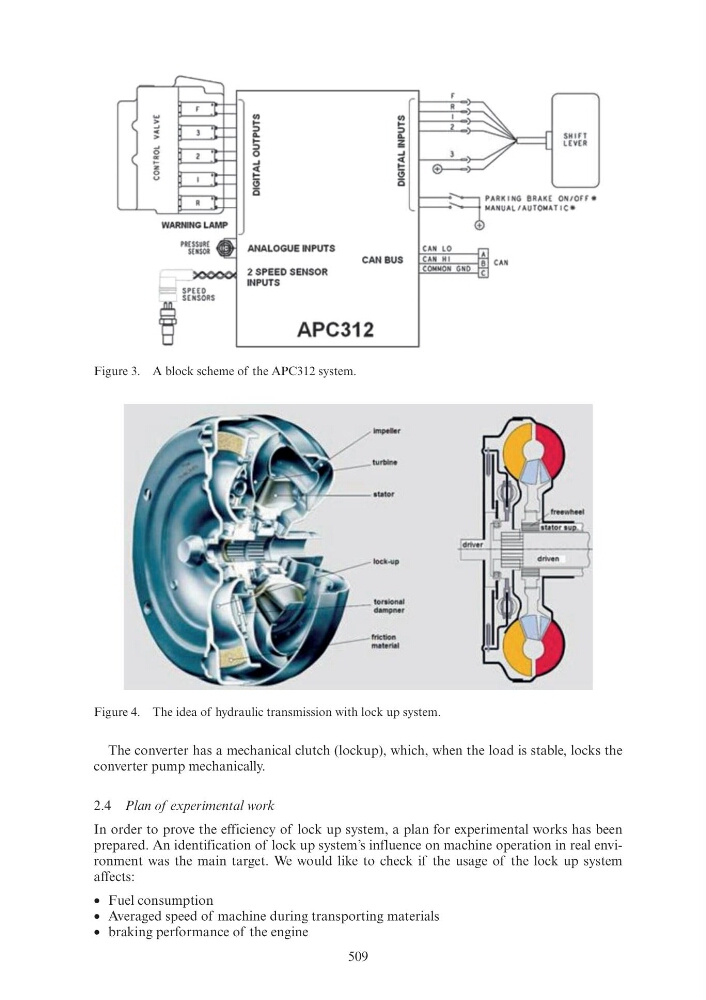

Figure 3. A block scheme of the APC312 system.
Figure 4. The idea of hydraulic transmission with lock up system.
WARNING LAMP
ms.sa!l
1!1$1)1:
ANALOGUE INPUTS
2 SPEED SENSOR
INPUTS
CAN8\iS
APC312
II
SlllrT
LEVU
9
P~RKING 8R~~t ON/Orr•
I
w~~UALJAUTOW~TIC
,C.It11 LO
~: C~A::; ' II=H~I ""l!"::::"'"t.!~!!J CAN
'((IMIION GNO C
