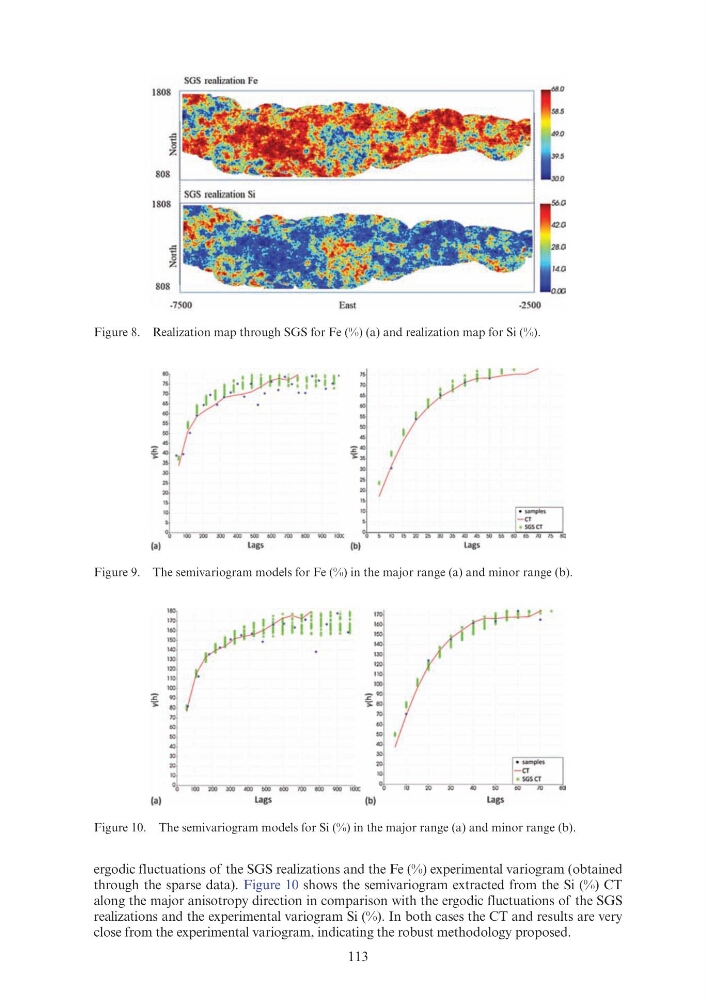

Figure 8. Realization map through SGS for Fe (%) (a) and realization map for Si (%).
Figure 9. The semivariogram models for Fe (%) in the major range (a) and minor range (b).
Figure 10. The semivariogram models for Si (%) in the major range (a) and minor range (b).
ergodic fluctuations of the SGS realizations and the Fe (%) experimental variogram (obtained
through the sparse data). Figure 10 shows the semivariogram extracted from the Si (%) CT
along the major anisotropy direction in comparison with the ergodic fluctuations of the SGS
realizations and the experimental variogram Si (%). In both cases the CT and results are very
close from the experimental variogram, indicating the robust methodology proposed.
"
